Air Muscle Connection

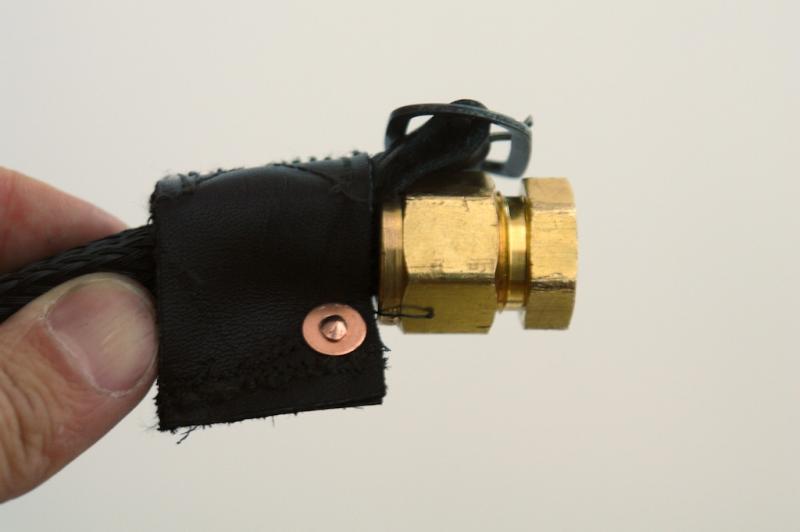

The most common point of failure in all the test have been the connection at the collar around each end of the air muscles. The inflation of the muscle along with the tension force rip through the threads around the collar, so I’ve reinforced those points with rivets with some room to expand.
