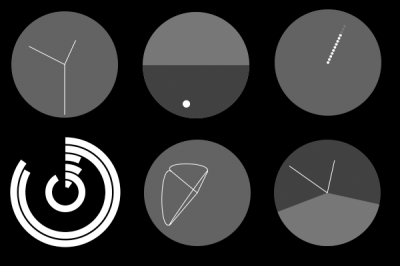

Time Scroll

Time Scroll is a web browser-based 24 hour clock. Every increment of the 24 cycle, down to the second, is rendered to the browser. It starts with 00:00:00 at the top and ends with 23:59:59 at the bottom. Each second, the browser scrolls one tick downward to change the display of the current time. The location of the browser’s scroll bar gives you a general sense of where we are in time relative to the 24 hour cycle.

Time Scroll is written in Javascript and PHP.

[Time Scroll]

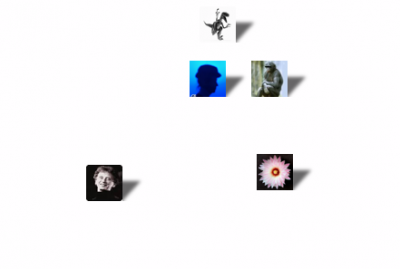

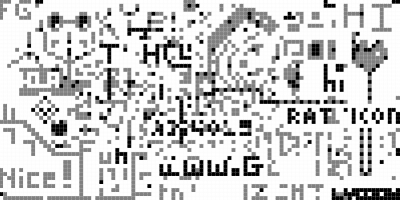

Avdrop

Picture 1

Here’s a little project from 1 in 1 for ITP30.

http://cwwang.com/avdrop/

I want people to be able to drop their avatars into an open space and drag as far or close as they want to others. or something like that. here’s something. drop your avatar in and get close to Red.

Published
Categorized as ITP, Websites

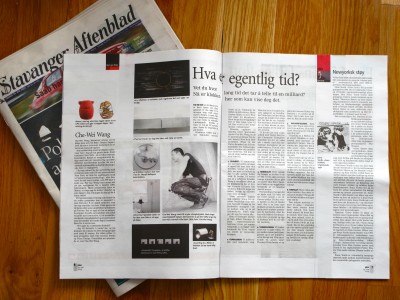

Stavanger Aftenblad Pluss

IMG_0721

Norwegian newspaper, Stravanger Aftenblad (Fredag 29, Mai 2009), published an article in their Pluss insert covering Time in Six Parts. I have no idea what it says. Can someone translate? I like Filmklokken.

Published
Categorized as Press

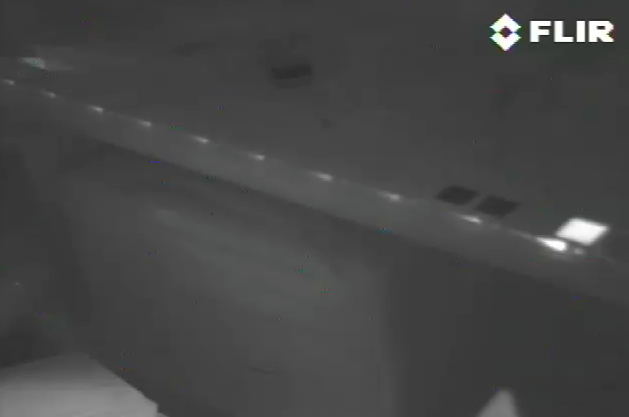

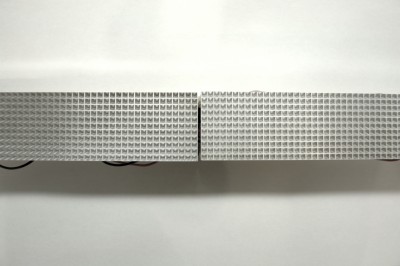

Thermal Clock

_dsc1859

We rely heavily on our vision to identify change. We see sand accumulating at the bottom of the hourglass. We see the minute hand rotate clockwise. How would our sense of time change if we cast time to another sense?

Thermal Clock is a timepiece that positions heat along a bar over a 24 hour cycle to tell time.

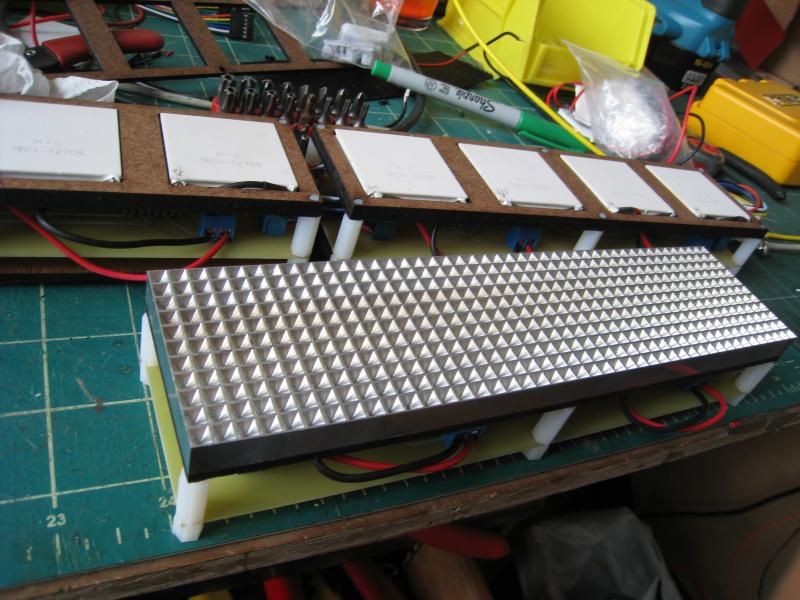

Using an array of peltier junctions, heat is emitted from a focused area moving from left to right along the bar over the course of a day.

_dsc1864

_dsc1857

Thermal Clock from che-wei wang on Vimeo.

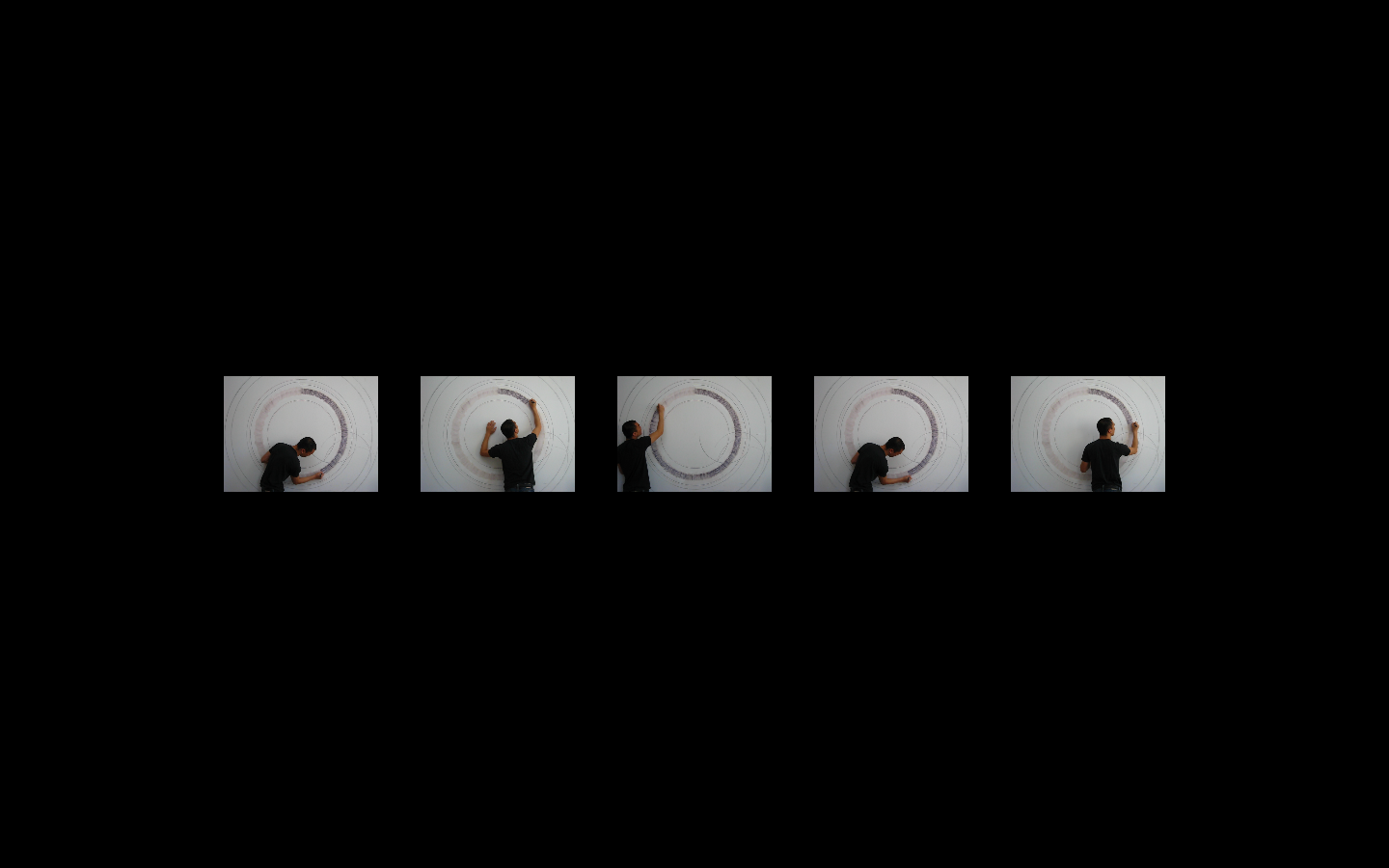

Cinematic Timepiece

picture 1cinematic

Time is our measure of a constant beat. We use seconds, minutes, hours, days, weeks, months, years, decades, centuries, etc. But what if we measured time against rituals, chores, tasks, stories, and narratives? How can we use our memory, prediction, familiar and unfamiliar narratives to tell time?

As a child, I remember using the length of songs as a way to measure how much time was left during a trip. A song was an appropriate period to easily multiply to get a grasp of any larger measure like the time left until we arrived to our grandmother’s place. The length of a song was also a measure I could digest and understand in an instant.

The first iteration of Cinematic Timepiece consists of 5 video loops playing at 5 different speeds on a single screen. The video is of a person coloring in a large circle on a wall.

The frame furthest to the right is a video loop that completes a cycle in one minute. The video to the left of the minute loop completes its cycle in one hour. The next completes in a day, then a month, then a year.

Through various iterations, we intend to experiment with various narratives and rituals captured in a video loop to be read as measures of time.

The software was written in OpenFrameworks for a single screen to be expanded in the future for multiple screens as a piece of hardware.

Cinematic Timepiece is being developed in collaboration with Taylor Levy.

Download the fullscreen app version [http://drop.io/cinematicTimepiece#]

Time in Six Parts

Time in Six Parts is a series of attempts to unravel and re-present time through alternative perspectives.  The hope is to demystify scales of time that are out of our immediate reach and explore new approaches to marking time.

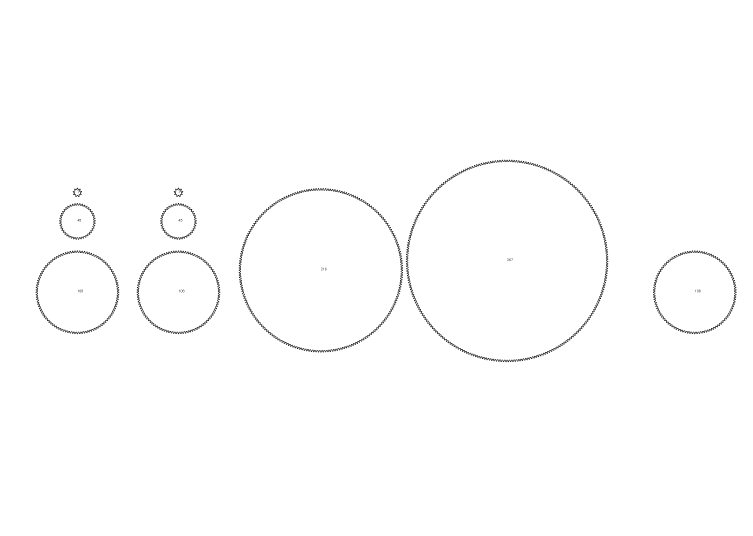

Sprocket Rhinoscript

sprockets-converted-01

UPDATE: this script generates inaccurately spaced teeth. sorry! fixes in new version coming soon. (6.25.09)

Here’s some basic rhinoscript code to draw your own sprockets based on the number of desired teeth, chain pitch and roller diameter. It’s very basic, but enough to draw what you want and get some custom sprockets lasercut. Draw a circle that’s larger than what you think it’s going to be in top view, then run the code.

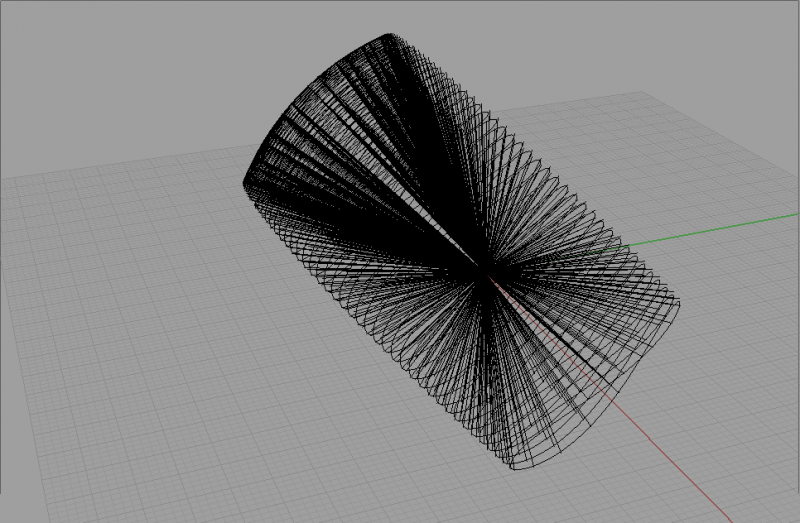

Sun Angle Script

sun_angle

The following rhinoscript code calculates and draws a series of sun angles based on the time, day and latitude.
NOTE: in my test there’s something happening to the angles around noon causing them to be inaccurate because the calculations are based on cos values. All other times besides noon should be fine.

Updated version with nicer UI from Ezio. Thank you!
Download:sunbatchrender_ezb.rvb

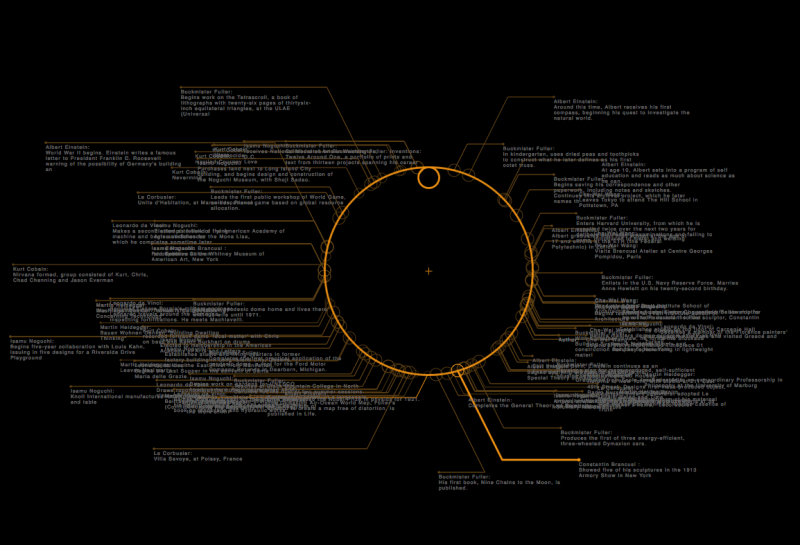

In a Lifetime

93-01

We often compare ourselves to friends, colleagues, relatives, idols, etc. on a scale of time that’s beyond our comprehension. Full of hope and objectives that are far into the future, we strive to achieve as much as our parents, friends, and heroes.
What do you plan to achieve in the next 5 years? 10 years? 20? How long will you live?

Though there are many unknowns, we share one lifetime as a common measure.

In a Lifetime is a website that visualizes individual achievements and milestones along the scale of one lifetime. Each point along the arc represents a milestone where the top (12th hour) is their moment of birth, the right quadrant (3rd hour) is a quarter through their life, the bottom (6th hour) is half way through their life, and so on. The mapping strips age as a parameter from individuals and scales lifespans to compare achievements of one life with another.

The website collects information about each individual through a publicly accessible interface. Input parameters are, author, date of birth, lifespan, milestone or note, and significance (0-100). Anyone who visits the site can enter information about an individual to be mapped. If one so desires, you can enter your predicted lifespan to compare personal milestones to others.

Some patterns emerge. Significant achievements are made between the half way point and the 3/4 point of their lives. Beyond the 3/4 point, nearly all individuals stop accruing achievements .
Around the half way point in their individual lives, Albert Einstein wrote the General Theory of Relativity, Constantin Brancusi completed the Kiss, Le Corbusier completed Villa Savoye, Leonardo Da Vinci drew the proportions of human figure after Vitruvious.

In a Lifetime was built using javascript, php, and mySQL.
(tested on firefox 3 and safari)

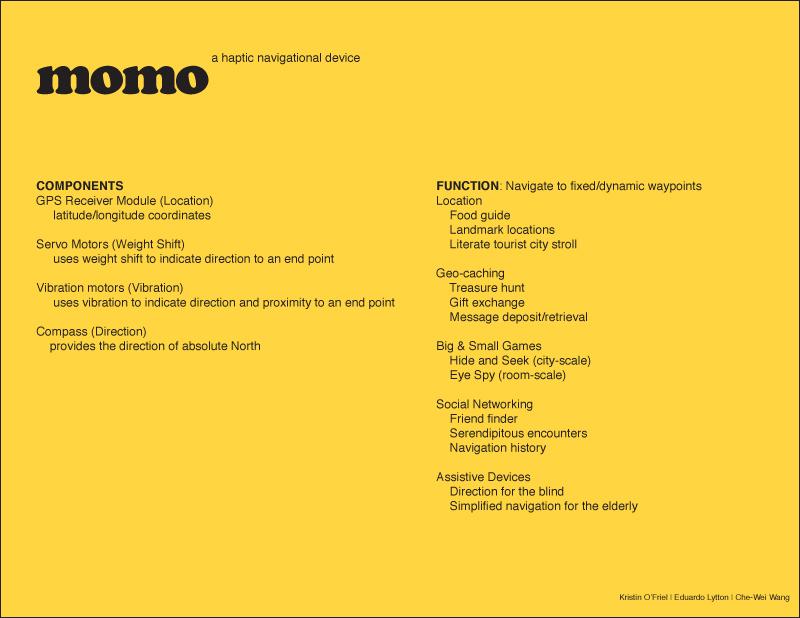

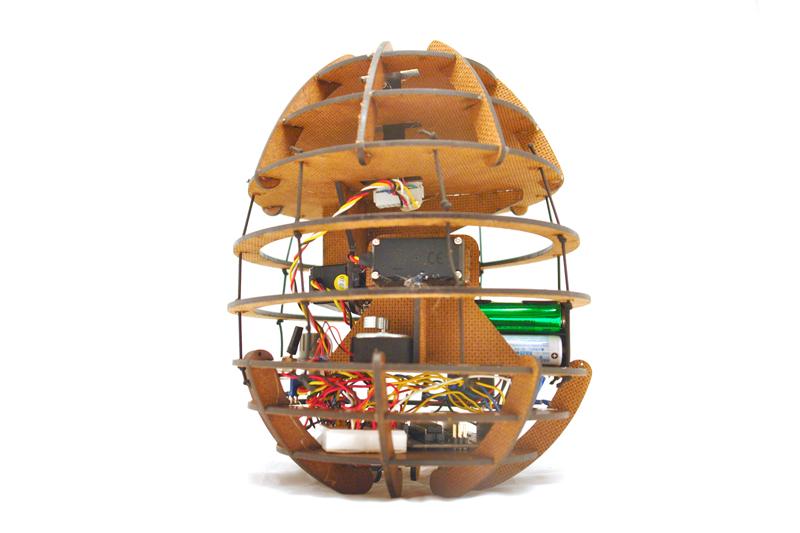

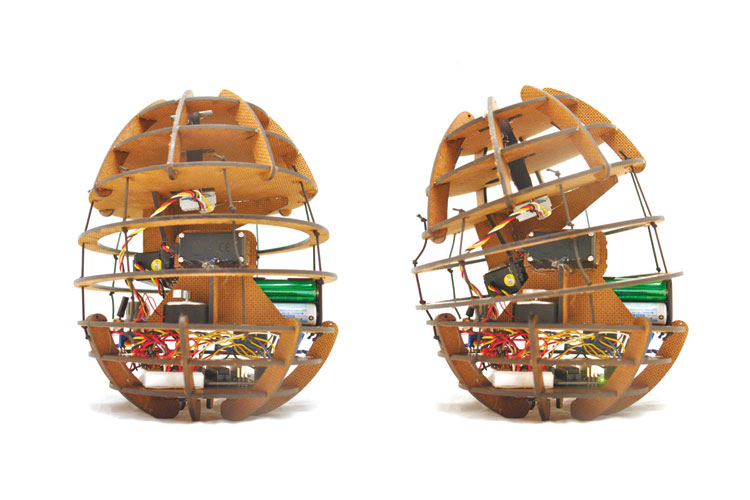

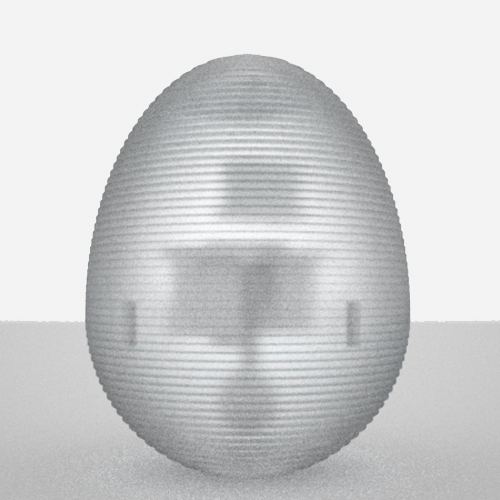

momo

sfe-0015-printad03-make

Sparkfun ads featuring momo in the January issue of Circuit Cellar, the Feb issue of Servo and March issues of Make and Nuts & Volts

Published
Categorized as ITP, Press

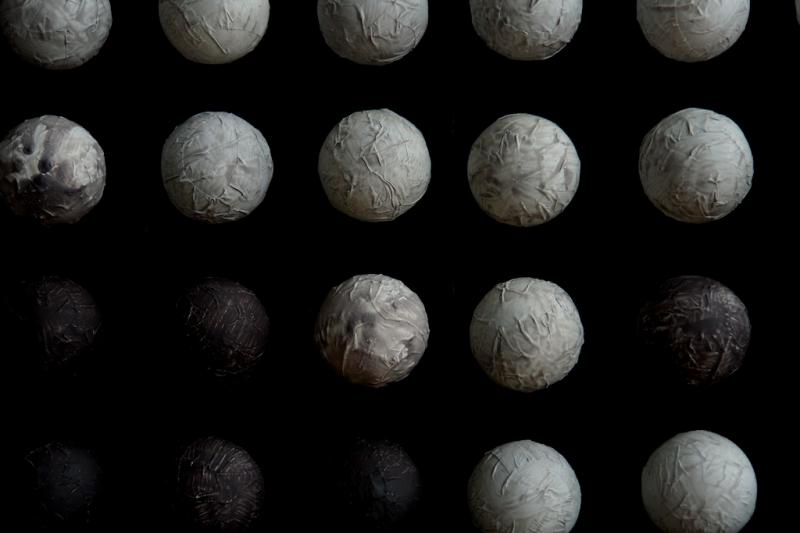

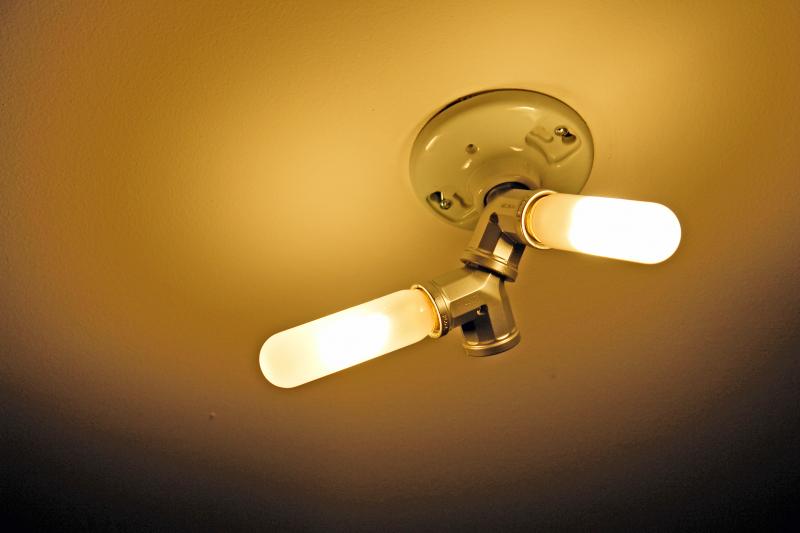

Thermochromic Slow Resolution Display

A slow resolution display made out of standard lightbulbs and thermochromic paint.

This display lives at the intersection of digital control and analog output. A matrix of lightbulbs painted with thermochromic paint allows for an image to appear and dissipate analogously to the temperature of each bulb.

The overall effect defies our ordinary understanding of materials and time within technological systems.
In this case, lightbulbs are used for heat and not light. And the refresh rate of an image is constrained to the time it takes for the material of the screen to change temperature.

More on thermochromism here.

Here, we’re using 40 watt bulbs. They take a few seconds to warm up and turn white and a couple minutes to cool down and fade back to black.

Built by Alex Abreu, Taylor Levy, and Che-Wei Wang

Thanks to the dozens and dozens of you who helped make this project possible!


Thermochromic Display from che-wei wang on Vimeo.

dsc01550dsc01549dsc01546

dsc01540dsc01544dsc01536

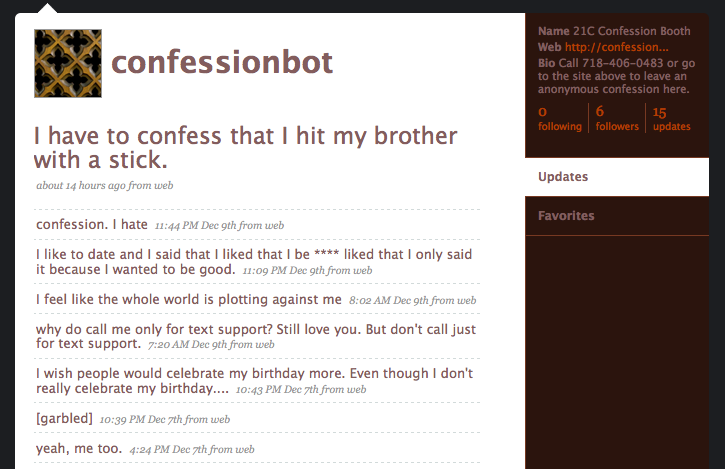

21st Century Confession Booth

The 21st Century Confession Booth is a service for anyone to anonymously unload the burden of a sin or secret. Confessions can be dropped off by entering them on the web at confessionbot.com , by calling 718-406-0483, or by finding one of our public confession microphones. Messages are anonymously transcribed and posted to twitter.com/confessionbot.

Behind the scenes, the phone system is using quicktate.com’s api to transcribe speech to text and a custom php script to deliver the confession to twitter.

confession

Who do you have a crush on?
Did you lie today?
Who do you secretly hate?
Who do you secretly love?
Who do you envy?
Have you cheated?
How much was your last tip?
What’s the dirtiest thing you’ve ever done?
Do you secretly like KFC?
How about that hair in your bf’s back?
Do you pick your nose with your gf’s tweezers?
What sites you visit when you are home alone?
Did you really miss the train? really?
Do you like tomato based sauces?
Do you cheat on crosswords?
Did you eat junk food everyday?
Did you finish your room mates’s milk again?
Are you really taking the pill?
Do you like her apartment?
Did you change your underwear today?
What teacher would you have an affair with?

Leave a confession and get on with your day.

P.Life V2


plife at IAC from che-wei wang on Vimeo.

plife_06176

plife_04812

plife_04240

plife_03618

plife_02422

plife_01146

plife_00714

plife_05734

P.Life is a large scale interactive screen designed for the IAC’s 120”² wide video wall. In the world of P.Life, Ps run across the 120′ screen frantically moving material from one house to another. Along the way, Ps exchange pleasantries (based on text message inputs) as they pass by each other, offering a helping hand to those in need. The landscape shifts and jolts based on audio input from the audience, tossing Ps into the air. Playful jumps into midair often end in injury, forcing them to crawl until a fellow P comes by to help out.

Features
Text messaging to create new characters of different sizes and dialogues.
Audio input to influence landscape
Performance backend to influence landscape
Ps move with life-like motion as they walk, jump, fall, run skip, crawl, carry boxes, push boxes, etc.
P.Life is written in OpenFrameworks and uses the Most Pixels Ever library

By Che-Wei Wang and Jiaxin Feng
Live Music by Taylor Levy

wuyingxian_3132028791_7cb2b3be0b_bwuyingxian_3131974377_090d1153da_b
photos by wuyingxian

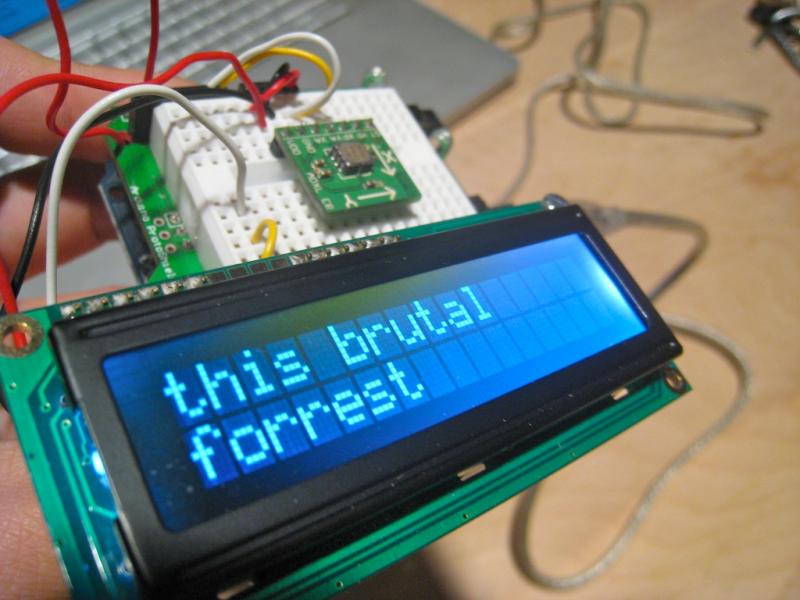

Elevator P

Elevator P interprets random conversation in an elevator into poetry and publishes them immediately on twitter. Using a hidden microphone, Elevator P captures unexpected chatter, un-staged and raw. The interpreter elevates mundane elevator conversations into beautiful flowing poetry capturing the deep essence of each dialogue.

Haiku Poetry.
http://twitter.com/chatterbot

Tilt Sensor to Live Web

Tilting my laptop changes the background color of a div element on a webpage. [Live Tilt]

An applet reads tilt sensor values from my laptop, posts them to sensorbase.org, then a webpage running ajax reads the sensor values and changes a background color. LIVE.


It’s super slow right now because I can’t figure out how to get sensorbase to only send me the latest value in the dataset, so i have to poll through a ton of values until i reach the end of the set.
Last polled id number is written and read from a txt file to keep count. Live tilt values to web color updates every 500 milliseconds now.

P.Life

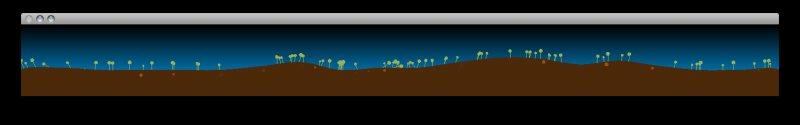

p02

P.Life is a large scale interactive screen designed for the IAC’s 120′ wide video wall. In the world of P.Life, Ps run around growing, living, and dying, as the landscape continuously changes creating unexpected situations challenging their existence.


Scenario

Screen fades from black to dawn and rising sun along a horizon. The bottom third of the screen shows a section through the landscape cutting through underground pipes, tunnels, reservoirs, etc. Towards the top the surface of the landscape is visible as it fades and blurs into the horizon and sky.
A few Ps wander around the flat landscape. A number appears on screen for participants to send an SMS message to with their name. As participants send SMS messages, more groups of Ps appear on screen representing each SMS and wander across the landscape. The landscape begins to undulate as the audience interacts with the screen, creating of hills, valleys, lakes, and cliffs. Ps running across the landscape fall to their death as the ground beneath their feet drops or ride down the side of a hill like a wave as a hill moves a cross the screen like a wave. Ps that fall to their death slowly sink into the ground and become fertilizer for plant-life, which is then eaten by other families of Ps allowing them to multiply.

p01

Features
SMS listener to make new families of Ps
An array of IP cameras to transmit video for screen interaction
Background subtraction to capture the audience’s gestures
or Open CV with blob detection or face detection to capture the audience’s gestures
or IR sensors to capture the audience’s gestures
or Lasers and photo-resistors to capture the audience’s gestures
Multi-channel audio triggers for events in P-Life based on location
Background elements and landscape speed through sunrise to sunset in a 3 minute sequence
Ps with life like motion as they walk, jump, fall, grow, climb, swim, drowned, die, stumble, flip, run, etc.
pixelated stick figures? large head?
Simple 8bit game-like soundtrack
Various plant-life grown from dead Ps

Precedents
Lemmings, N for Ninja, Funky Forrest, Big Shadow, eBoy, Habbo

Technical Requirements
IP camera array
Mulit-channel audio output

MultiMesh

Rhino loves to crash when it attempts to mesh a large set of surfaces in one shot. This often happens when you go to render and Rhino has to mesh all the objects in the scene. The MultiMesh plugin meshes multiple objects one at a time. By meshing your enormous elaborately detailed scene before you render, you save time and your sanity.

Version:0.03
MultiMesh.rhp.zip

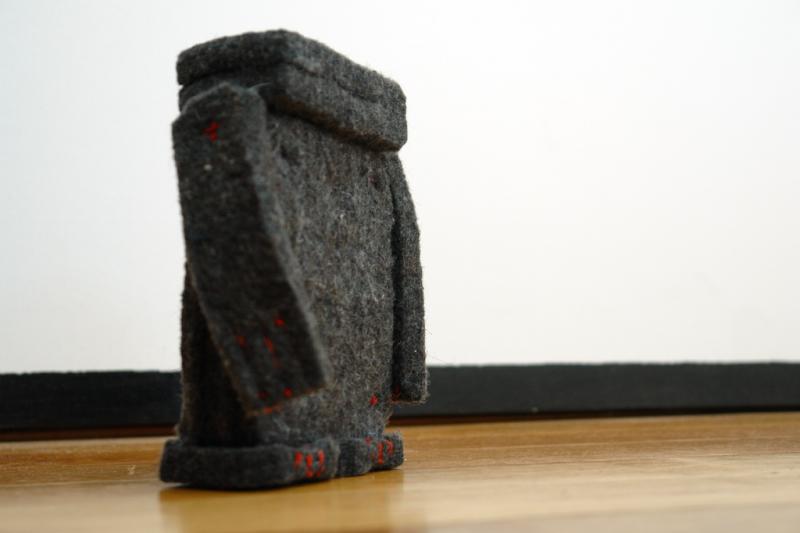

Nandalow

なんだろう coming to Tokyo. August 2008.
dsc01183dsc01184dsc01177

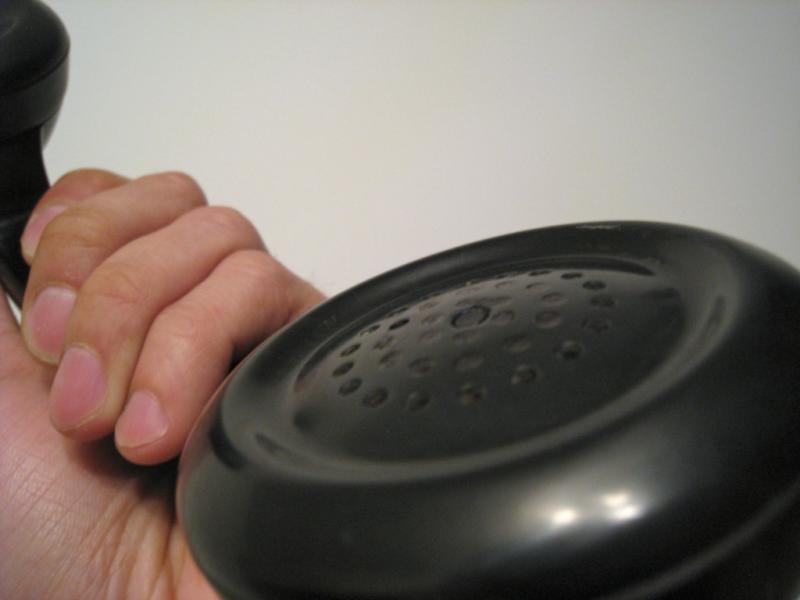

Dreyfuss Bluetooth Handset

img_1145img_1152

This is a one-off hack to retrofit a genuine Western Electric Dreyfuss Telephone Handset into a full fledged Bluetooth handset. A single button at the center of the mouthpiece controls all the functions (pairing, answering calls, etc.), while a blue and red LED indicator glows from within. The handset recharges via USB and lasts 6 hours in active talk-time and 110 hours in standby mode.

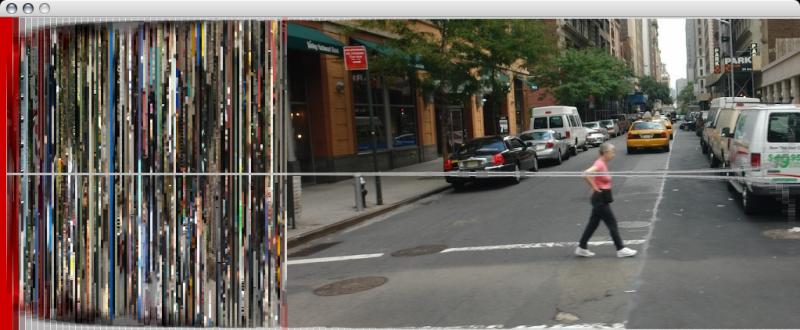

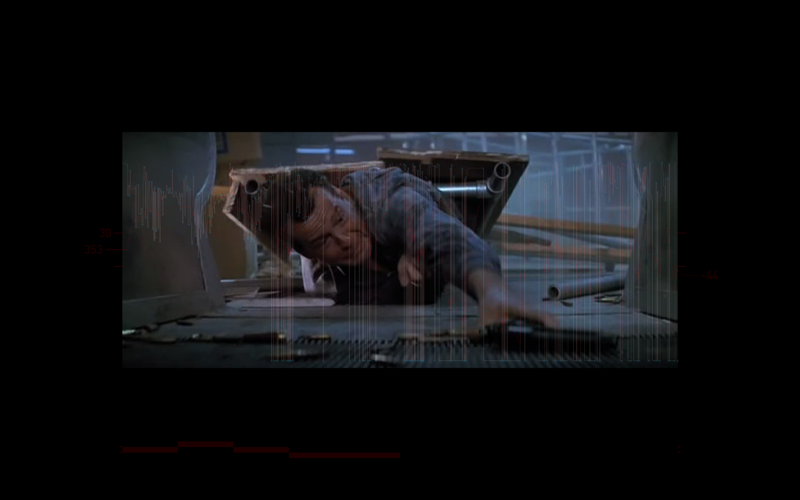

Feedback Playback 2

dhpicture-9dhpicture-7

fb-1-352009fb-2-352009fb-3-352009

FeedBack PlayBack is a dynamic film re-editing and viewing system. The users’ physical state determines the visceral quality of scenes displayed; immediate reactions to the scenes feed back to generate a cinematic crescendo or a lull. We use material that is rigorously narrative, formulaic, and plentiful: the action movie series Die Hard, starring Bruce Willis. A narrative sequence key breaks any given Die Hard movie into narrative elements, corresponding clips were collected from each of the Die Hard movies. Individual clips fall into high, medium, and low action/arousal categories. The user is seated, and places his or her hands on a Galvanic Skin Response (GSR) detection panel (GSR readings are the same kind of data collected in lie detector test). After calibration, the movie begins showing, and clips are displayed depending on the user’s level of arousal and engagement. The narrative sequence is maintained, though the clips are pulled from any of the movies.

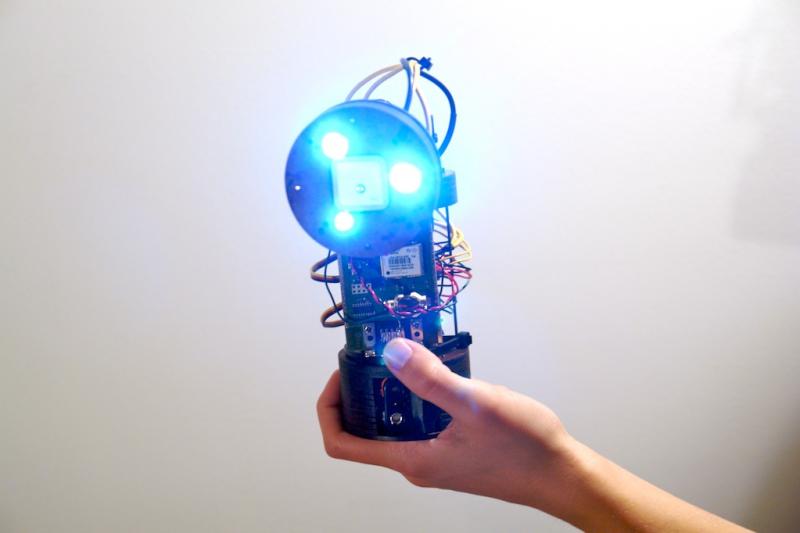

Tetherlight

Tetherlight is a hand held light that perpetually points at its sibling. Two Tetherlights constantly point at each other, guiding one Tetherlight to the other with a beam of light.


Tetherlight: Prototype 02 Rotation from che-wei wang on Vimeo.

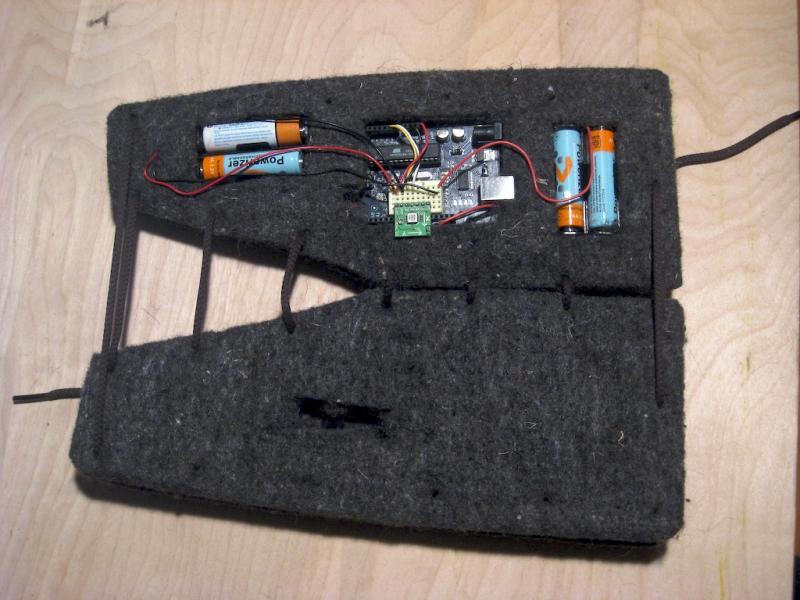

The devices are each equipped with a GPS module, a digital compass, and a wireless communication module to locate, orient, and communicate its position to the other. They each calculate the proper alignment of a robotic neck to point a light in the other’s direction. In order to maintain the light’s orientation, an accelerometer compensates for the device’s tilt.

Tetherlights are for loving spouses, cheating spouses, girlfriends, boyfriends, children, pets, bags of money, packages, and pretty much anything that you would want to locate at a glance. An ideal use of Tetherlights would be in a situation where two people or two groups of people need to wander, but also need to locate one another in an instant. In a hiking scenario, a large group might spit up to accommodate different paces. With Tetherlights, understanding one’s whereabouts in relation to the other group is represented spatially with a bright light in the appropriate direction.

Tetherlight attempts to make one’s relation to a distant person more immediate by making a physical pointer instead of an abstract maps. With traditional maps, people need to communicate their positions, orient their maps, locate a point on the map, then look up in that direction. Tetherlight does it in an instant. The difference is like looking at a map to see where your uncle lives or having a string that’s always attached to him.

If you’re interested, here’s the Arduino Code: Tetherlight06xbeeGPS.pde

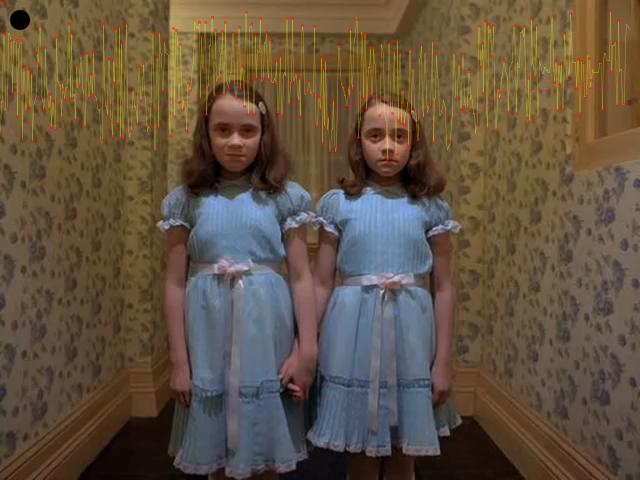

Feedback Playback

FeedBack PlayBack is an interactive, dynamic film re-editing/viewing system that explores the link between media consumption and physiological arousal.

This project uses galvanic skin response and pulse rate to create a dynamic film re-editing and veiwing system. The users’ physical state determines the rhythm and length of the cuts and the visceral quality of scenes displayed; the user’s immediate reactions to the scenes delivered, feeds back to generate a cinematic crescendo or a lull. This project exploits the power of media to manipulate and alter our state of being at the most basic, primal level, and attempts to synchronize the media and viewer– whether towards a static loop or a explosive climax.

In a darkened, enclosed space, the user approaches a screen and his or her rests fingertips on a pad to the right of the screen. The system establishes baseline for this users physiological response, and re-calibrates. Short, non-sequential clips of a familiar, emotionally charged film– for example, Stanley Kubrick’s 1980 horror masterpiece “The Shining” –are shown. If the user responds to slight shifts in the emotional tone of the media, the system amplifies that response and displays clips that are more violent and arousing, or calmer and more neutral. The film is re-edited, the narrative reformulated according to this user’s response to it.

Feedbak Playback is by Zannah Marsh and Che-Wei Wang

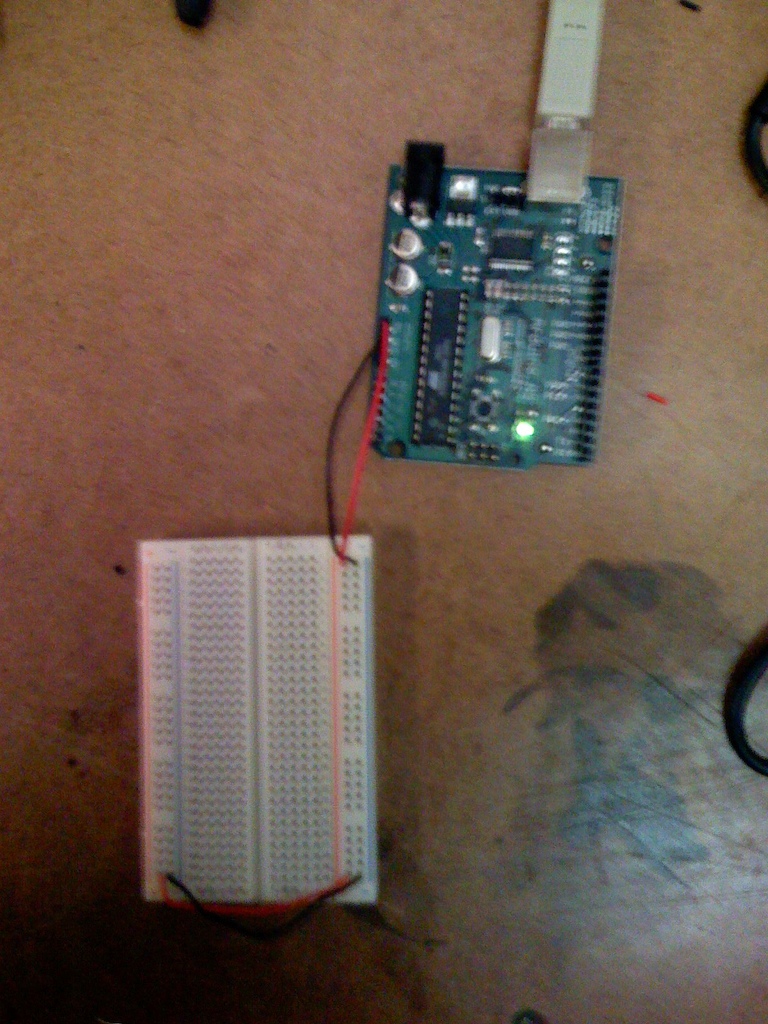

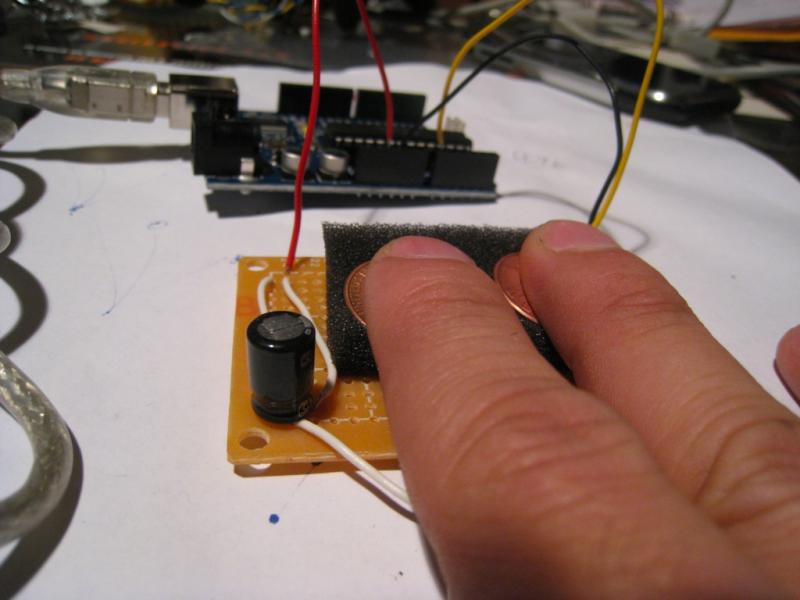

GSR Reader

Galvanic skin response readings are simply the measurement of electrical resistance through the body. Two leads are attached to two fingertips. One lead sends current while the other measures the difference. This setup measures GSR every 50 milliseconds. Each reading is graphed, while peaks are highlighted and an average is calculated to smooth out the values. A baseline reading is taken for 10 seconds if the readings go flat (fingers removed from leads).

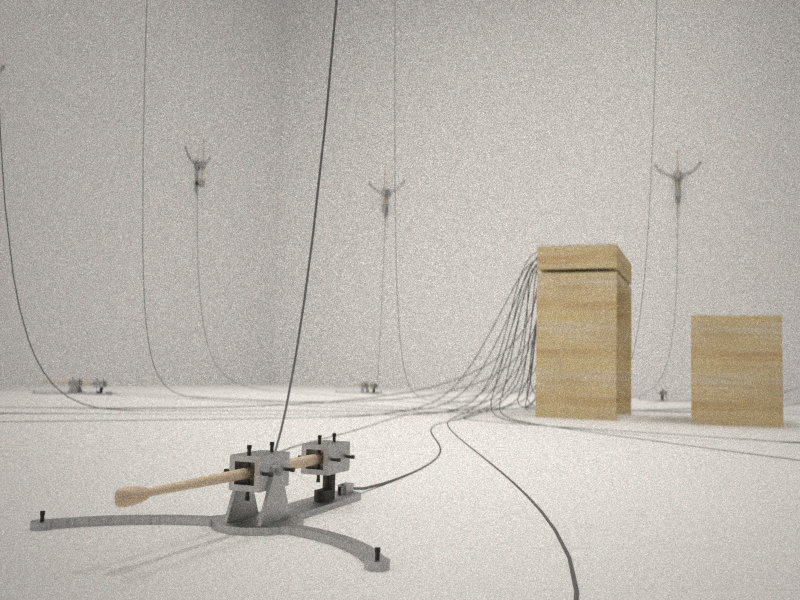

Drum Space

Drum space is a percussion instrument that transforms environments into drums. Participants are immersed within the space of drums as beats are created from the surrounding surfaces. The audio experience of the space is negotiated by each participant as they add and remove beats from sequences previously constructed by other participants. Will the space be raging noise or subtle clicks?

Ornos: Prototype 02


Here’s the first test with Ornos. The compass readings are behaving pretty well considering it’s right underneath a spinning hard drive. The 1.2Ghz processor and 512 RAM don’t seem to be enough to download and render the image quickly enough, so I’m going to have to figure out how to speed things up.

Etek EB-85A GPS Example Code


Here’s some example Arduino code for getting a Etek EB-85A module up and reading latitude and longitude (will probably work with most GPS modules). You can purchase a module from Sparkfun.

The module only needs power, ground, rx and tx. Most modules like the Etek start sending NMEA strings as soon as it has power. The Etek module takes a minute or two to get a satellite fix from a cold start in urban environments. Signals drop out once in a while between tall buildings at street level even with DGPS and SBAS. On a clear day, if you’re lucky, you can get a signal sitting by the window in urban canyons.

//Etek GPS EB-85A Module Example
//by Che-Wei Wang and Kristin O'Friel
//32 Channel etek GPS unit
//modified from original code by Igor González Martín. http://www.arduino.cc/playground/Tutorials/GPS
boolean startingUp=true;
boolean gpsConnected=false;
boolean satelliteLock=false;

long myLatitude,myLongitude;

//GPS
#include
#include
int rxPin = 0;                    // RX PIN
int txPin = 1;                    // TX TX
int byteGPS=-1;
char linea[300] = "";
char comandoGPR[7] = "$GPRMC";
int cont=0;
int bien=0;
int conta=0;
int indices[13];

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

void setup() {
  //GPS
  pinMode(rxPin, INPUT);
  pinMode(txPin, OUTPUT);

  for (int i=0;i

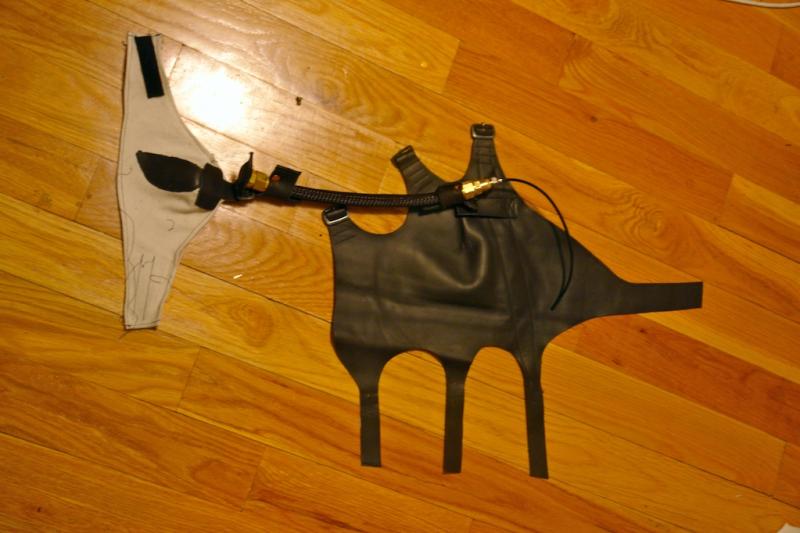

Soft Pneumatic Exoskeleton : Ankle Support


The ankle support is a low profile sleeve around the foot and a strap at the heel to connect to the air muscle. A shorter 12″ muscle connects the ankle support to the calf. The calf attachment is now constructed out of a single piece of leather with nylon reinforcement at the top to prevent buckling and stretching when the air muscle is actuated. It’s ideal to have the solenoid valve as close to the air muscle as possible, so I’m going to have to make room for that somewhere on the calf.

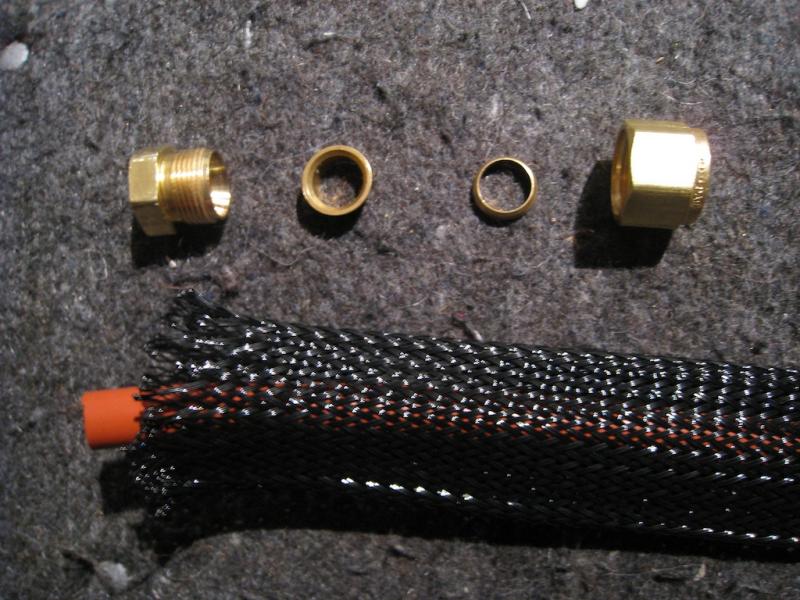

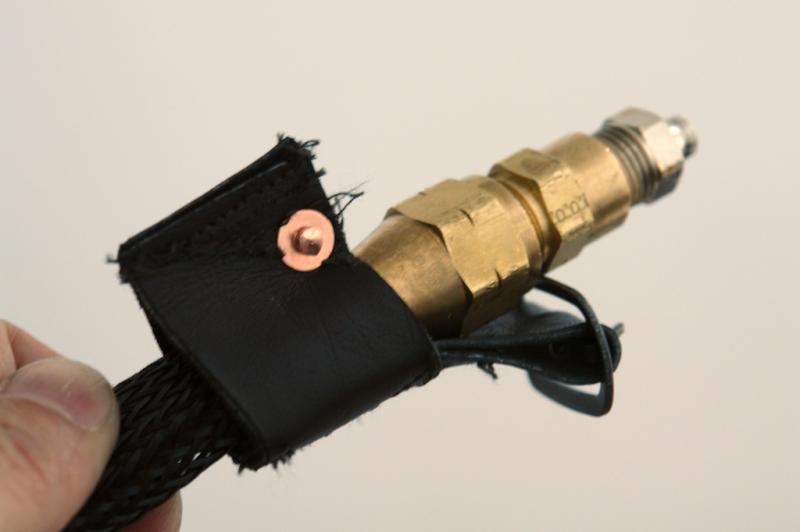

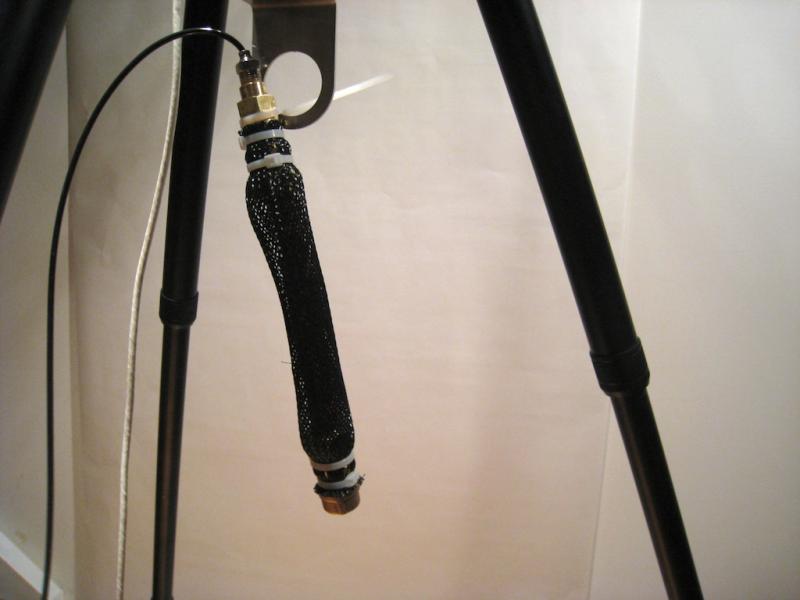

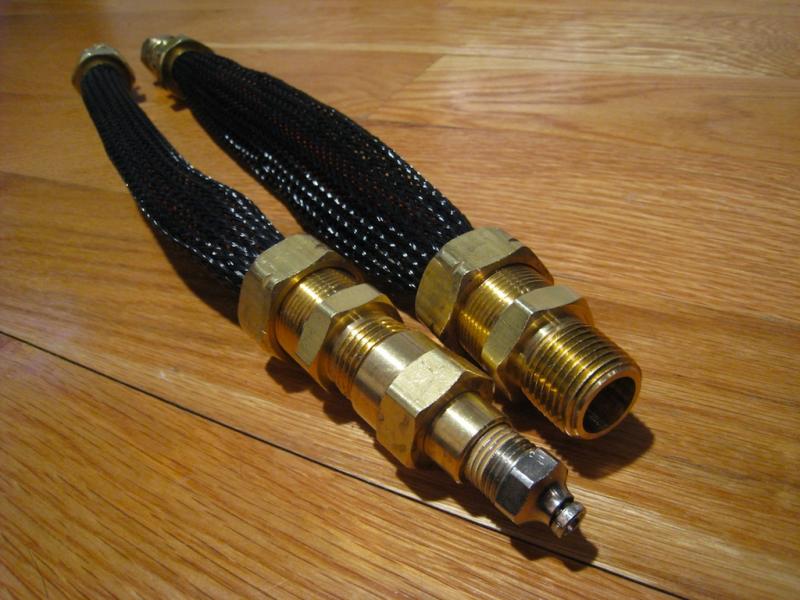

Air Muscle Connection


The most common point of failure in all the test have been the connection at the collar around each end of the air muscles. The inflation of the muscle along with the tension force rip through the threads around the collar, so I’ve reinforced those points with rivets with some room to expand.

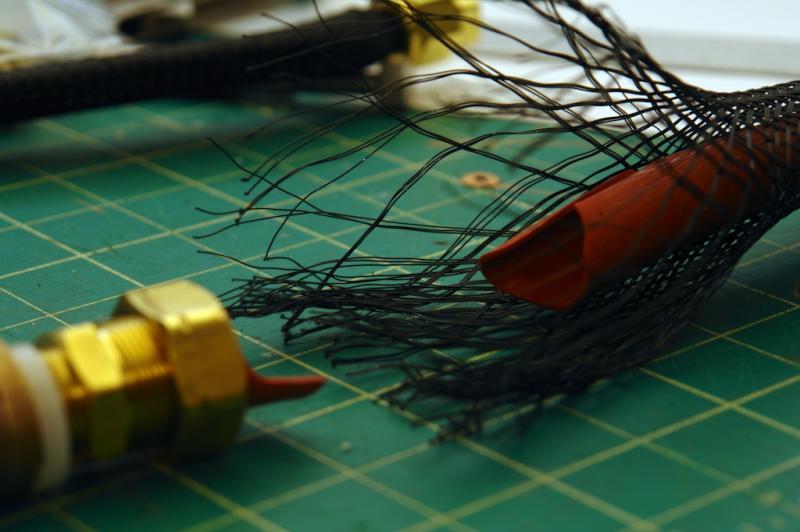

Exploded Air Muscle


This is what happens when you pump compressed air directly into an air muscle without a pressure regulator. Good thing I wasn’t wearing it when it exploded.

Soft Pneumatic Exoskeleton : V 01 Test



After the first round of testing, I realized assisting jumping with pneumatics is nearly impossible. The size of the tubes and tank necessary to get a high enough cfm to actuate the air muscles at the speed of jumping seems too large for a lightweight wearable application. So, I’m going to concentrate on assisting walking. Maybe speed walking.


Soft Exoskeleton V01 Test from che-wei wang on Vimeo.

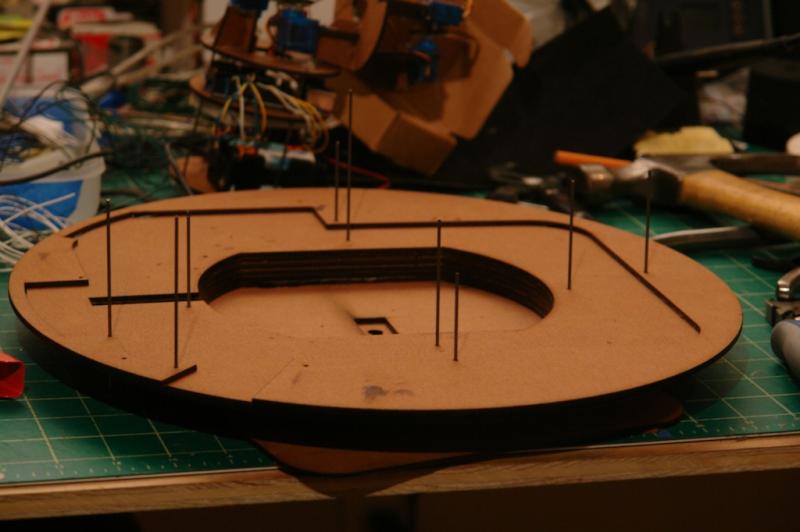

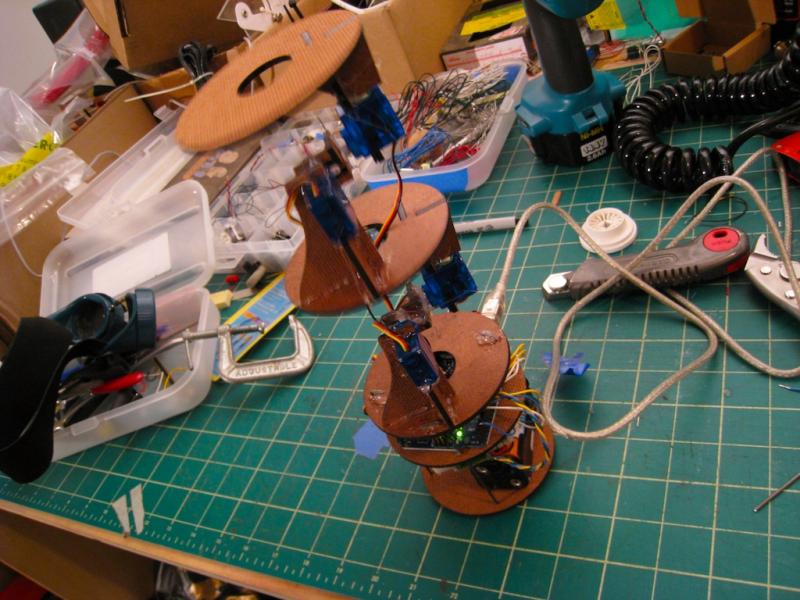

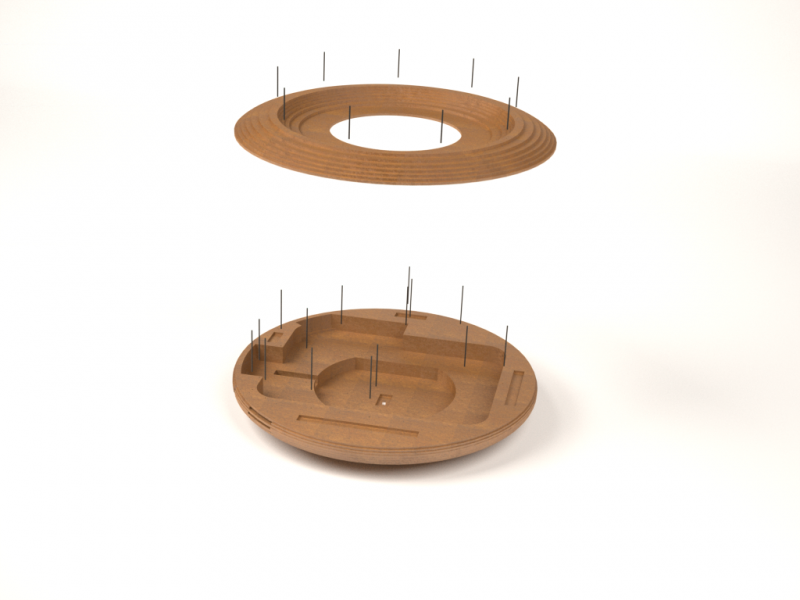

Ornos : Prototype 01

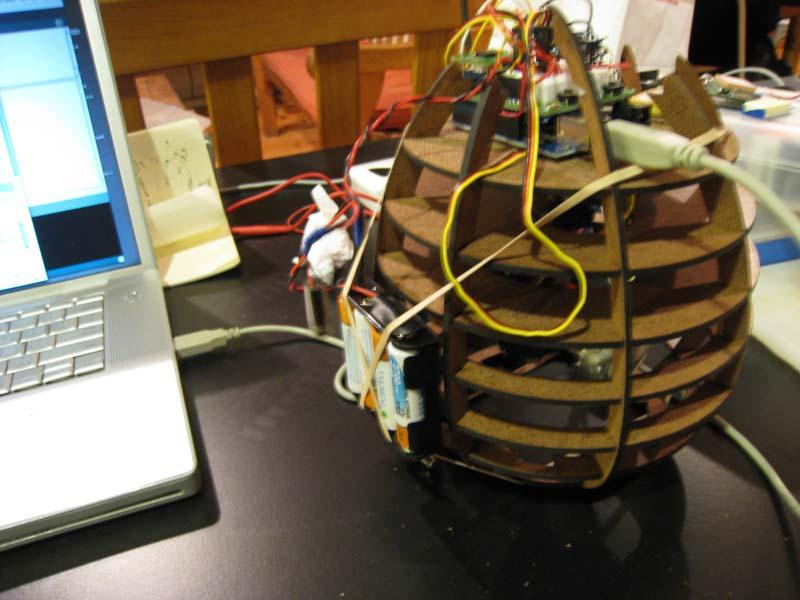

I was going to cover the lasercut masonite with a leather sleeve, but I’m going to go with cnc milled RenShape with a painted finish for the next prototype. The compass needs to be calibrated to the offsets caused by the magnetized computer hardware and I need to tweak some code to get the frames to load faster and smoother. I’ll post a video as soon as that part is worked out.

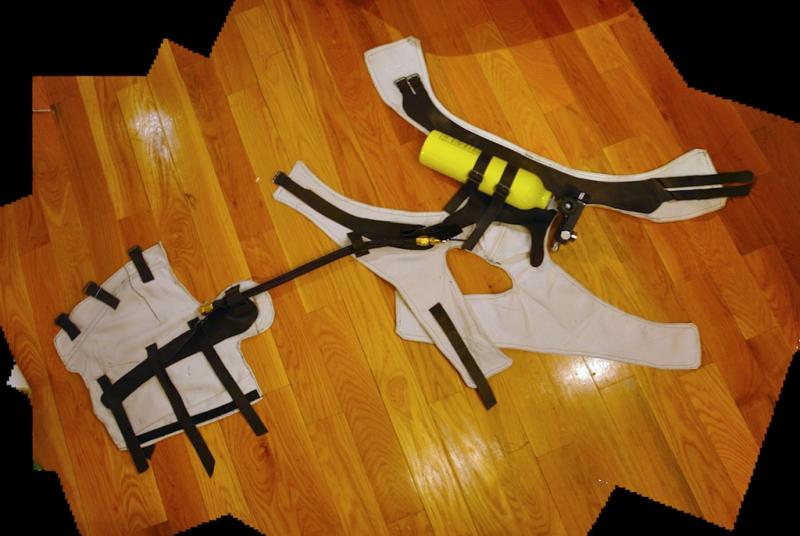

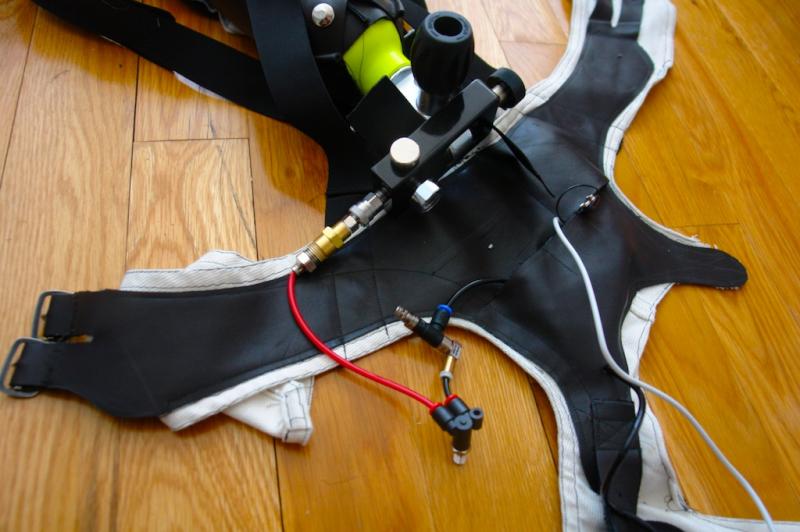

Soft Pneumatic Suit : Prototype 01

musclesuit01.jpg\

I finally have a full assembly of all the major components sewn with thick canvas and leather. The small scuba tank provides the air pressure, controlled by an Arduino and solenoid valves. The basic operation of pneumatic muscle works. Air pressure at about 100psi inflates the muscle, creating a contracting motion of about 2 inches, enough to make my leg kick out (although the speed of inflation needs to be faster).

The harness for the scuba tank and a guide for the pneumatic muscle are still issues to be dealt with. The strap for the thigh needs to extend further down to help guide the placement of the pneumatic muscle and the scuba tank needs to be attached in a more comfortable way.

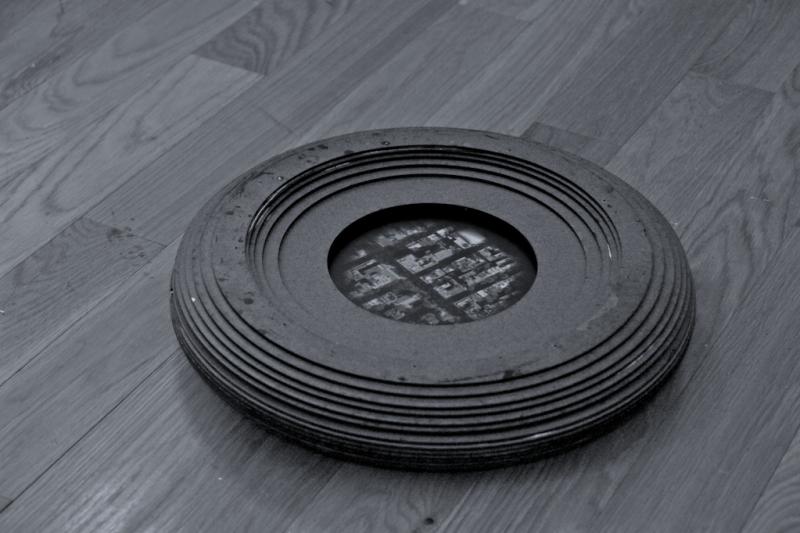

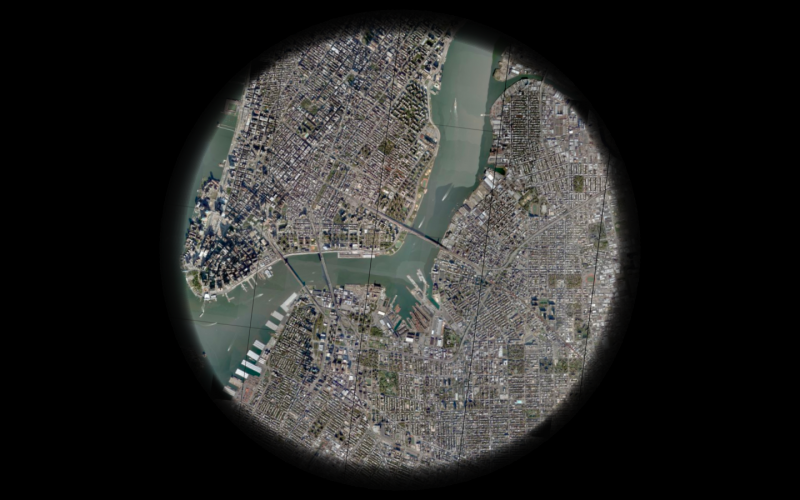

Ornos : A View from Above


Since the first hand drawn maps of the stars to satellite imagery and GPS navigation today, our frame of reference and our perception of space has been molded into a view from above. Our understanding of place is often linked to an abstract representation on a map rather than a physical relational comprehension. You could probably point out Azerbaijan on a map, but how many of us can simply point in its direction across the globe? The image of the globe projected onto a vertical surface is so pervasive, we often associate “up” with north as we project ourselves into a mental image of map.

The accessibility of GPS and online map services have continued to reinforce the “up” vector while creating a greater divide between the physical world and its virtual representations. Today, we view from above, as primarily experienced on our screens, in an elevation view without any regard to its physical context. We project our presence into the screen through multiple translations of orientation. Viewing a map on a computer screen requires one to find a location on the screen that represents a position, then the abstracted orientation of the vertical screen must be translated and scaled into the physical context of the current position. We’ve lost a step in comprehension without the compass and the horizontal map. The traditional map and compass gave an intuitive understanding of a current position in relation to physical space by rotating the map to align with the space it represented. What appeared one inch to the left of my location on the map could be confirmed by looking up to my left.

Ornos is a telescopic view from above. The horizontal screen reconstructs a view from a position directly above itself using satellite imagery and maps. Exploring your current surroundings is as simple as sliding the device on any surface to pan across the globe. Zooming is controlled by rotating the device itself. The onboard digital compass and GPS modules orient the image on the screen to reflect your physical surroundings while satellite imagery and maps are dynamically loaded from Google, Microsoft, or Yahoo.


Ornos : Prototype 01 from che-wei wang on Vimeo.

Here’s the first test with Ornos. The compass readings are behaving pretty well considering it’s right underneath a spinning hard drive. The 1.2Ghz processor and 512 RAM don’t seem to be enough to download and render the image quickly enough, so I’m going to have to figure out how to speed things up.

Infinite Mouse Tracking

I wanted to use the mouse as a simple surface optical encoder to get infinite panning motion. The problem with reading mouse coordinates on the screen, is that once the mouse reaches the edge of the screen, it stops counting. So a simple solution is to reposition the mouse (using the robot class) every few frames and calculate the change in mouse positions.


//InfiniteMouseTracking
//by Che-Wei Wang
//2.20.2008

float mapPositionX;
float mapPositionY;
long count=0;
int moveX=0;
int moveY=0;

void setup()
{
  size(screen.width,screen.height,P3D);
  mapPositionX=width/2;
  mapPositionY=height/2;

  //noCursor();

  //set the mouse postion once before the program begins
  try {
    Robot robot = new Robot();
    robot.mouseMove(width/2, height/2);
  }
  catch (AWTException e) {
  }

}

void draw()
{
  background(0);

  //reset the cursor Position every few frames
  if(count%4==0){
    try {
      Robot robot = new Robot();
      robot.mouseMove(width/2, height/2);
    }
    catch (AWTException e) {
    }
    moveX=mouseX-pmouseX;
    moveY=mouseY-pmouseY;
  }

  count++;

  //new position= old position + movement * decay
  mapPositionX=mapPositionX+moveX*.8;
  mapPositionY=mapPositionY+moveY*.8;

  stroke(255);
  line(width/2,height/2,mapPositionX,mapPositionY);
  ellipse(mapPositionX,mapPositionY,100,100);

}

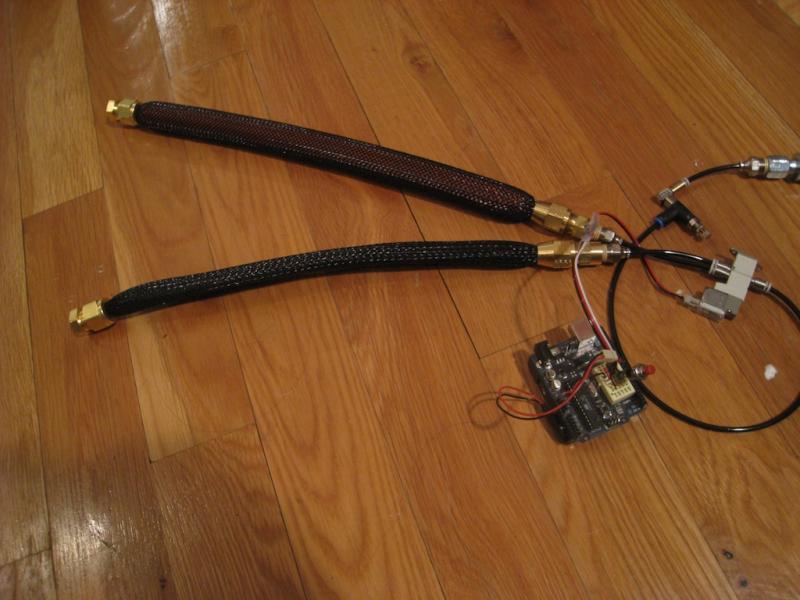

Pneumatic Muscle : Solenoid Valve Test


I finally got the solenoid valve hooked up to an air compressor and and arduino board. Air pressure is regulated at 100 psi. It looks like I’m going to need bigger pipes to get more cfm for faster muscle actuation. The shorter muscle has an over sized braided sleeve, which I thought might help the actuation distance, but it seems like it just takes more air to fill up and doesn’t make a noticeable difference.


Pneumatic Muscle: Solenoid Valve Test 02 from che-wei wang on Vimeo.

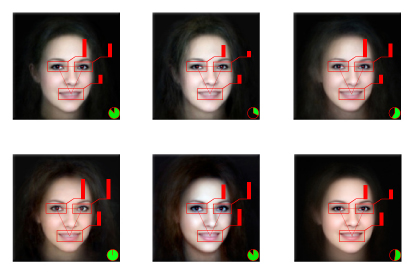

Trust Vision

trust.jpg ((image manipulated from original by manitou2121, an interesting composite of faces from hotornot.com))

Why should I trust you? Because you sound trustworthy? Smell trustworthy? Look trustworthy? How do we measure trust?

Trust Vision is a personally biased trust measuring video camera. As each frame is presented, a face or faces within the frame are superimposed with trust ratings based on previous faces that have been rated by the user. Over time, the computer creates a mental map of facial features of a trustworthy individual. The real-time analysis of facial features is aided by the user’s bias, as he or she discretely changes the trust ratings of individuals on the screen. Changes in the mental map may “out” a previously trusted person or improve someone’s standing.


Window

Urban Computing : Window


Windows give a frame of reference, crops a view, magnifies a perspective. It filters and blocks. Window is the opening that mediates here from there. I would argue that windows are what give walls meaning. Without windows, there wouldn’t be a notion of “there” since the possibility of something else on the other side wouldn’t exist without the opening. Windows provide a glimpse, a frame, a blur, a dimension of something more, a thought into a different time and space. A prisoner in solitary confinement opens a window in his mind to keep his sanity, while the Queen of England peeks out her picture frame window, checking the weather outside.

The biggest dilemma of the window is the opening itself. We’d like a filter. We want to see what’s there, but we don’t want to hear it, or feel it. Perhaps we have a level of control with the windows in our minds, excluding dreams, nightmares, and synesthesia (leaky mind windows), but physical windows are bound to the performance of material, a challenge since the beginning of windows.

Glass attempts to provide clear views, filter some light, block temperature, and baffle sound, all in the span of a 1/4″ section. We’ve come a long way since the small openings in 15th century castles, yet we still haven’t seen the holy grail of windows. Windows should be thin, structural, fully insulated, sound proof, malleable sheet material that can filter varying amounts of incoming light and views while remaining completely outwardly transparent. Oh, and it should be cheap, lightweight and sustainable. We have low thermal conducting material (Aerogel), fiber optic skylights (Parans Solar Lighting), lightweight skins (ETFE / Water Cube Skin), self-cleaning glass (Pilkington Activ), LCD privacy glass (Privalite), time-space warping windows (Khronos Projector), illuminating glass (Lumaglass), non-reflective glass (Luxar), breathing skins (Living Glass), living organic envelopes (Breeding Spaces), interactive storefronts (Displax), thin-shell frameless glass, the list goes on. So would a combination of these give us the ultimate window?

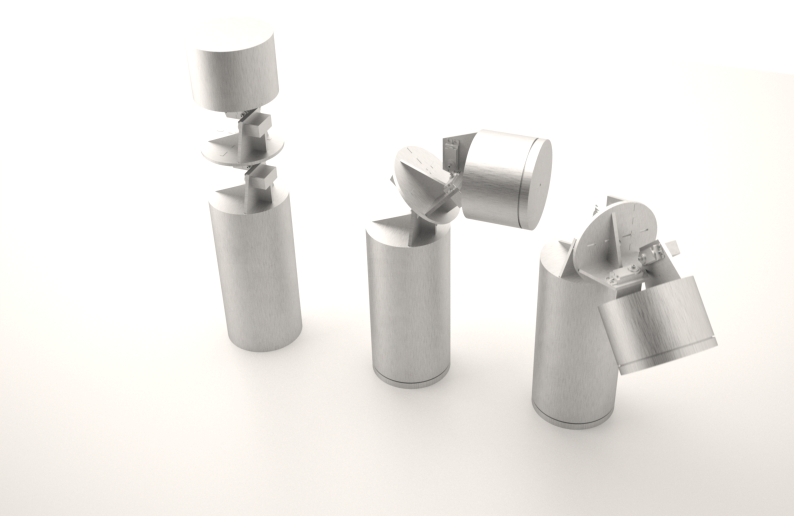

Laser Tether : Sketch


Here’s a sketch of how the parts might fit to get the laser to freely point in any direction. 4 servo motors work in tandem to tilt the laser head. Batteries and the circuitry is stored in the bottom half of the cylinder. I was going to have a mechanical gyro to have it orient itself to the ground, but the form seemed too restricted, so I’m opting for a gyro sensor to deal with orienting the device to gravity.

TeleCursing

Video chat is great, but maybe I don’t want to see your face. Or more likely, I don’t want you to see me sitting at my computer in my underwear. A less intrusive channel of communication, like IM, is often desirable but we lose several modes of expression when we only communicate with text. Could a greater sense of presence be transmitted through our most common computer interfaces (keyboard, mouse)? Many of us chat with IM, but using CAPS and emoticons to communicate, lack a level of fidelity to properly transmit a range of emotions. Without any training or instruction, we already convey a large set of emotions towards our devices to express ourselves. We often express our feelings to devices closes to us. We slap our TV, pet our computer, and slam our mouse with frustration, yet these common expressions are ignored. What if we could open a channel of communication for your mouse? What if your mouse gestures could transmit your feelings across to your friend?


TeleCursing is a chat plugin that takes your mouse cursor and simply places it on your friend’s screen. A thin line is drawn on the screen connecting the mouse cursors within proximity. With the cursors on the screen, you can flirt, scribble with frustration, hold hands, play tag, or just know when your friend is active on the other end. The cursor could be customize to be shown in a less distracting translucent cursor or in a more lively avatar-like way with animations based on mouse vector, proximity and clicks.

Other multimouse hacks: DualOsx v.1(hoax?), MPX: The Multi-Pointer X Server, SpookyAction [video]

Sensors Galore

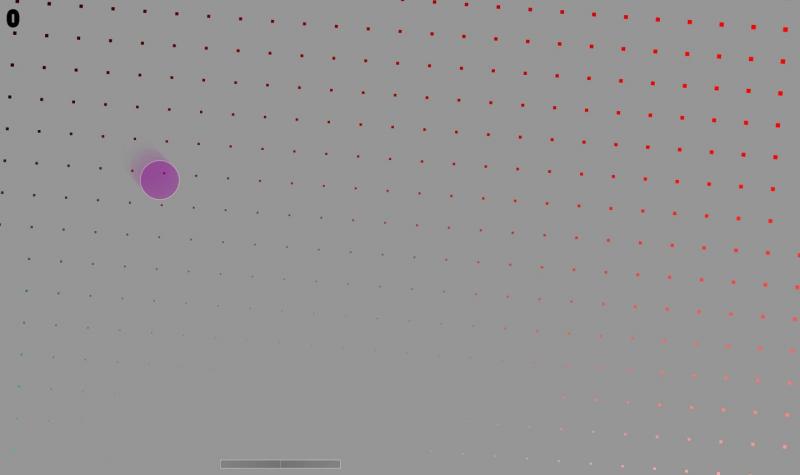

An example of blobDetection, Ess, sms, and ocd all rolled into one sketch. Click and drag on the screen to move the HUD sliders around. (nothing is going to load here. copy the code to your processing sketch to run it)

Wall

Urban Computing: What is a wall?

Wall, as a simple force of division, marks a boundary between here and there. How do we define our world through walls? One could argue that geographical boundaries act as walls defining spaces within which all forms of life acknowledge and encroach. But even geographic boundaries are crossed intentionally for a particular pursuit or by forces of nature outside one’s control. Political boundaries, drawn from geography, enclose a code of conduct and promote a unified culture and language, but are also fought over, erased, and redefined. Cities born out of geographic convenience and political strategy, like Pingyao once surrounded and protected by walls now grow amorphously, engulfing neighboring villages. The most conventional wall, the wall that divides home and nature, surrounds and protects us. This pervasive division between outside and inside, public and private is becoming unstratified as ubiquitous technologies seamlessly occupy both realms.


Shigeru Ban’s Curtain Wall House blurs the traditional boundary between inside and outside, private and public. Masaki Endoh’s Natural Ellipse seamlessly extends the topology of the interior private surface to the exterior. Increasing presence of public surveillance via webcams is creating a global neo-panopticon. ((Koskela, Hille . Surveillance & Society CCTV Special (eds. Norris, McCahill and Wood) 2(2/3): 199-215 )) Banksy reclaims private walls in public domains for public expression. The Great Wall of China is now a tourist attraction. The Principality of Sealand (a nation on a concrete and steel island) offers high security internet services. ((“The Principality of Sealand.” The Principality of Sealand. 30 Jan. 2008 <http://www.sealandgov.org/history.html>.)) Youtube is available on cellphones and cellphones can upload directly to Youtube.  Fred Sandback defines planes in space with a minimal trace of yarn, yet the division of space is respected. The threshold between here and there, yet devoid of any material to block, alter or reflect any of our 5 senses. ((Fred Sandback, “Remarks on My Sculpture 1966–1986,” in Fred Sandback Sculpture 1966–1986 (Mannheim: Kunsthalle, 1986) <http://www.diacenter.org/exhibs/sandback/sculpture/remarks.html> )) Architectural production now resides in the mass media, redefining our perception of space, once defined by walls, to images. ((Colomina, Beatriz. Privacy and Publicity. Cambridge: MIT Press, 1994.))

The point of view of modern architecture is never fixed, as in baroque architecture, or as in the model of vision of the camera obscura, but always in motion, as in film or in the city. Crowds, shoppers in a department store, railroad travelers, and the inhabitants of Le Corbusier’s houses have in common with movie viewers that they cannot fix (arrest) the image. Like the movie viewer that Benjamin describes (“no sooner has his eye grasped a scene than it is already changed”), they inhabit a space that is neither inside nor outside, public nor private (in the traditional understanding of these terms). It is a space that is not made of walls but of images. Images as walls. ((Colomina, Beatriz. Privacy and Publicity. Cambridge: MIT Press, 1994. p.6))

Pneumatic Muscles


Here’s my first set homebrew pneumatic muscles. I’m not sure how strong these are going to be, but it looks promising. The compression fittings aren’t being used the way they were meant to be used, so it’s likely that connection will be the first point of failure when it goes under stress.

As soon as the assembly is tested, I’ll be posting instructions on how to make your own.

Laser Tether


The Laser Tether is a hand held laser pointer that perpetually points at its sibling. Two Laser Tethers constantly point at each other no matter where they are on the globe. If my cousin in Beijing had a Laser Tether and I turned on mine in New York City, our lasers would point towards our feet as the lasers draw a straight line through Earth between my cousin and myself.

The devices are each equipped with a GPS module, a digital compass, and a cell network module to locate, orient, and upload its location to an online database. They then calculate the proper alignment of their lasers in relation to the other. In order to maintain an orientation that is always perpendicular to the ground, the lasers are mounted on a self leveling mechanism similar to existing laser levels like the DEWALT DW077KI.

Possible uses for the devices are for loving spouses, cheating spouses, girlfriends, boyfriends, children, pets, bags of money, packages, and pretty much anything that you would want to locate at a glance. Although potential uses are many, the scenarios I have in mind are for hiking, sailing, driving, caravaning, patrolling, playing tag, jogging, getting lost in crowds, hunting, tracking, spying, and battle strategy coordination. An ideal usage of the Laser Tether would be in a situation where two people need to wander, but also need to locate one another in an instant.

With GPS units becoming more pervasive, many GPS tracking applications have databases of people’s known locations. The emerging debate on privacy and accuracy are a major concern ((Katina Michael, Andrew McNamee, MG Michael, “The Emerging Ethics of Humancentric GPS Tracking and Monitoring,” icmb, p. 34, International Conference on Mobile Business (ICMB’06), 2006)), while the abstract representation GPS data in maps fail to convey a strong sense of immediacy and relevance. These applications like Navizon and Mologogo are open to large online communities and are visualized on maps. Common commercial applications of GPS tracking devices are used for fleet control of taxis and trucks, animal control, race tracking, and visualization. ((GPS tracking. (2008, January 27). In Wikipedia, The Free Encyclopedia. Retrieved 04:39, January 30, 2008, from http://en.wikipedia.org/w/index.php?title=GPS_tracking&oldid=187351992))

The Laser Tether attempts to make one’s relation to a distant person more immediate. The difference is like looking at a map to see where your uncle lives versus having a string attached to him.

Pneumatic Soft Exoskeleton


Pneumatic systems are clean, safe, lightweight, and reliable. In a pneumatic electronic hybrid system, electric components simply control the flow of air pressure, removing the burden of weight and kinetic actuation from electrical power to pneumatic power. The advantage is a lightweight low idle power system with high power kinetic impact.

My initial encounter with pneumatic systems like inflatable shelters and floatation devices exhibited an enormous potential for creating lightweight systems that can be reconfigurable and transportable. Pneumatic systems are used in various critical applications that require immediate response, reliability and flexibility. Air bag systems, inflatable life vests, and self-inflating rafts are of particular interest to me.

In terms of pneumatic systems as a wearable technology, a few possibilities come to mind (nomadic shelters, impact protection, an expressive suit, and a powered exoskeleton, just to name a few). Each have potential uses that interest me and many have been explored by others. Motoair sells pneumatically actuated vests and jackets for motorcyclists and other high impact sports to cushion accidents. ((Motoair, MOTOAIR, Jan 28.2008, <http://www.motoair.com/>)) Powered exoskeletons, currently developed within research groups around the world, are focused on assisting human locomotion through a wearable machine. ((exoskeletons: http://bleex.me.berkeley.edu/index.htm, http://www.newscientist.com/article.ns?id=dn1072, http://spectrum.ieee.org/print/1974, http://www.youtube.com/watch?v=0hkCcoenLW4)) Actuated parts of the machine coincide with the body and gross muscle groups to help lift heavy loads. A suit for the upper extremities has been created by Hiroshi Kobayashi, a roboticist from the Science University of Tokyo. ((BBC. BBC News: Health, Jan. 28 2008 <http://news.bbc.co.uk/1/hi/health/2002225.stm>)) Dr. Daniel Ferris and Dr. Riann Palmieri-Smith lead a group of researchers at the University of Michigan in creating pneumatically powered exoskeletons for the lower limbs. ((Human Neuromechanics Laboratory, Dr. Daniel Ferris and
Dr. Riann Palmieri-Smith. Jan. 28,2008. ))

The goal of the Pneumatic Soft Exoskeleton project is to create a set of soft and lightweight wearable pneumatic muscles for the lower extremities. A series of pneumatic muscles are worn around the legs to assist the user in lifting loads, walking, running, and perhaps jumping. Unlike other exoskeletons, this application would be untethered and constructed of primarily soft fabric, making the device more lightweight and flexible. The system will be built to remain primarily in an idle state to be activated only as needed. Primary concerns are weight, comfort, and flexibitily. As a benchmark, if I can wear the device and beat the world record for any track event, I would consider the device a success.

Features of the wearable system
The system will be powered by a pneumatic reservoir and triggered by the user’s motions or an external switch to activate the system only at desired moments. An electronic circuit, powered by a battery will sense and trigger movement through a series of artificial muscles. Pneumatic muscles work by inflating a silicon tube within a plastic braided sleeve. The inflation of the tube shortens the overall length of the assembly as the braided sleeve increases radially. ((Lightner, Stan, et al. The International Journal of Modern Engineering. Volume 2, Number 2, Spring 2002, Jan.28 2008 <http://www.ijme.us/issues/spring%202002/articles/fluid%20muscle.dco.htm>))

Pneumatic muscles are a relatively recent development in air powered actuation, lead by the Shadow Robot Company, and FESTO Corporation. They were originally commercialized by The Bridgestone Rubber Company in the 1980’s. ((Lightner, Stan, et al. The International Journal of Modern Engineering. Volume 2, Number 2, Spring 2002, Jan.28 2008 <http://www.ijme.us/issues/spring%202002/articles/fluid%20muscle.dco.htm>
Air Muscle videos: http://www.youtube.com/watch?v=w77YDDTXfRc&NR=1, http://www.imagesco.com/articles/airmuscle/AirMuscleDescription03.html)) Pneumatic muscles use simple materials that have a low cost to manufacture and are extremely lightweight. A fully assembled muscle can potentially have a 1:400 weight to strength ratio (compared to the 1:16 ratio of pneumatic cylinders and DC motors). ((Shadow Robot Company: Air Muscles overview. Shadow Robot Company. Jan. 28 2008. <http://www.shadowrobot.com/airmuscles/overview.shtml>)) The assembly is also flexible, cushioned, and operates smoothly, making it an ideal candidate as an artificial muscle for a wearable application.

The Pneumatic Soft Exoskeleton is worn by strapping components of of the system on parts of the leg to align the assistive muscle to major muscle groups in the leg. By attaching a few pneumatic muscles to assist gross movement of the lower extremities, properly timed actuation of the assisting muscles can add to the user’s own movements to achieve greater results in speed and power. Each assistive muscle would coincide with existing muscle groups and transfer power to tension lines that wrap around the leg in such a way that the forces transfer in a similar fashion to the muscle-tendon-bone hierarchy. The quadriceps femoris muscle group will be the primary group of focus. As the system is perfected, other muscle groups will be identified and addressed.

Components of the system
The system consists of pneumatic muscles of varying sizes which attach to the main wearable frame. The wearable frame is a large fabric that is wrapped tightly around the thigh and crus. The frame consists of straps that are sewn in a pattern to distribute forces from muscle-to-tendon junctures to the rest of the frame. The straps are collected at several junctures to accept a tension connection from a pneumatic muscle.

Air flow of each pneumatic muscle is controlled by a single tube from a 3-way solenoid valve which controls the air flow in and out of the pneumatic muscle from a portable air reservoir worn at the hip of the user. Each solenoid is controlled by outputs from a battery powered Arduino board. Switches from the user’s inputs are fed to the Arduino board to control the actuation of the artificial muscles.

Uses
Potential uses for the Pneumatic Soft Exoskeleton follow much of the current applications for powered exoskeletons. These wearable machines can assist lifting and locomotion. The added benefit of the Pneumatic Soft Exoskeleton is its weight and flexibility. By making the system lightweight and soft, its appearance is less obtrusive and less of a burden to fit to the body. The system is potentially more affordable and highly customizable because of the simplicity of the components.

Technical concerns
The Pneumatic Soft Exoskeleton must be lightweight and perform reliably to assist locomotion. Since the system relies on an air reservoir, it is likely that a user may find the system insufficient in its capacity to perform continuously. This concern can be address with a larger reservoir, but that would add more undesirable weight and volume.

There may be a potentially harmful side-effect to the body due to repeated unfamiliar stress on bones and muscles. The softness of the system is intended to dampen any impact that may be harmful, but repeated stress points due to the power of the assistive muscle or the location and transfer of forces to the limbs may be damaging.

Precedents
Here’s a nice intro to the subject from engineeringtv.com
Human Neuromechanics Laboratory at The University of Michigan
HAL at the University of Tsukuba
Muscle Suits at Koba Lab
Wearable Power Assist Suit at Kanagawa Institute of Technology, Robotics and Mechatronics

Talking Face to Face


Talking Face to Face is a networked communication system that detects the position of two users in relation to each other anywhere on the globe. Using a combination of GPS and a compass, the audio output is modified to create the sensation of the voice’s position and proximity to the listener. If Bob is in NYC and Sarah is in LA, their voices would sound relatively distant to each other. Bob would face west and Sarah would face east so their voices would sound as if they were facing each other. If Bob turns away, Sarah’s voice would sound like they were no longer facing each other. As Bob and Sarah turn their positions the voice they hear will gain reverb, volume, and other effects to simulate their relative presence in a spacial environment.

We are curious beings that need and want confirmation of our existence and presence. We like to explore, yet we want to stay at home. We yearn for freedom, difference and change, yet we find comfort in familiarity. I believe it’s this dilemma that telepresence aims to solve.

The presence stack:
Physical sensory input of a moment,
channeled through nerve paths to the brain,
processed and compared to a set of memories of the sensation,
judgments constructed on the presence of the sensation or the realness of the input,
and predictions constructed of the next sensation.

Is what i see, smell, feel, hear, or taste, real? is it out of the ordinary? What is real and not real? Is this moment not the moment I expected to follow the last moment?

Presence deals with and persists in change. Our presence cannot be static. Presence cannot remain in the past or exist in the future. We can only continuously observe and predict changes within our current moment based on our past experiences.

Being present is a combination of sensations that confirm our prediction of where we are spatially and mentally. If I were to sense or experience a moment that is out of the ordinary and a magnitude beyond what I expect, I would question the reality of my environment in that moment. In other words, if my prediction of the near future is shattered by an extraordinary experience outside my threshold of reality, my presence comes into question. For example, if I were to approach my sink and turn on my faucet and nothing comes out, something unexpected has happened, but I’ve had similar experiences in the past, so I can imagine what had gone wrong and find a solution. On the other hand, if I go to turn on the faucet and butterflies fly out, the presence of the faucet in my reality or my presence in this reality would be questioned. Is that real? Is this real? Could this be happening now? Am I dreaming?

We are often willing to accept the presence of other people with only a fraction or glimpse of their entire presence. I often mistake a mannequin in my peripheral vision as a real person, only to be surprised when a closer look reveals its lifelessness. I can also fool myself into believe I’m somewhere else no matter how hard I try to resist when I listen to binaural recordings of a previous space and time. We are willing to complete the picture for ourselves because we try to match previous experiences to our current experience to predicting how our environment should be. Could implied presence by a mannequin persist over a long period of time? Can audio input be so convincing that we question our mismatched vision?

In each confirmation of another’s presence, i think we are looking for life. Is the other alive? The classic horror movie scenario of walking down a hall of medieval armor statues questions how we determine the presence of another being. Is someone wearing the armor and standing very still, or is it empty and lifeless? The presence of a ghost or prankster is only confirmed when something moves. Or is that enough? If their axe drops to the ground, would we assume someone deliberately dropped the axe, or did the shifting of my weight on the creaking floors cause the accident? Would a glimpse of a pair of eyes confirm our suspicions of someone’s presence? Would the sound or smell of someone’s breath convince us? Whether it is a single clue or a combination of movement, sight and sound, we are looking for a confirmation of life.

If I follow my brother into a dark basement, i would continually feel his presence no matter how dark or silent the room may be. Even if he didn’t respond to me calling his name, i would still expect him to be there when i turn the lights on. Perhaps he’s ignoring me or playing a game with me. It would be a hard stretch in our imagination and a break in our reality if we turned the lights on and he was nowhere to be found. Perhaps I would even search for him in the basement behind the shelves and behind the boxes. Without some indication of him exiting the basement like the sound of the door closing or the sound of his footsteps, his presence is automatically completed by a single instance of his existence before we entered the basement. Our imagination wants to complete our senses to detect his presence.

We want presence and will stretch our imagination to detect presence.

moMo : Version 4


momo version 4 now has a sturdier lighter frame. A couple switches were added to control power to arduino and to the GPS unit. The whole unit somehow runs off 4 AA batteries instead of 8. I also realized the compass unit is not as accurate as we’d like. It has a sour spot around 180-270 degrees where the measurements are noticably off by several degrees, not due to electromagnetic interference from the nearby motors.

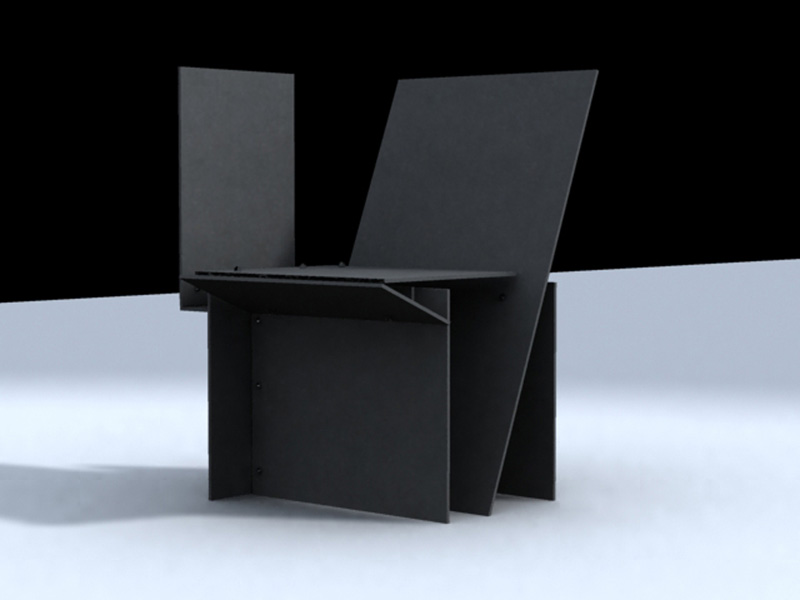

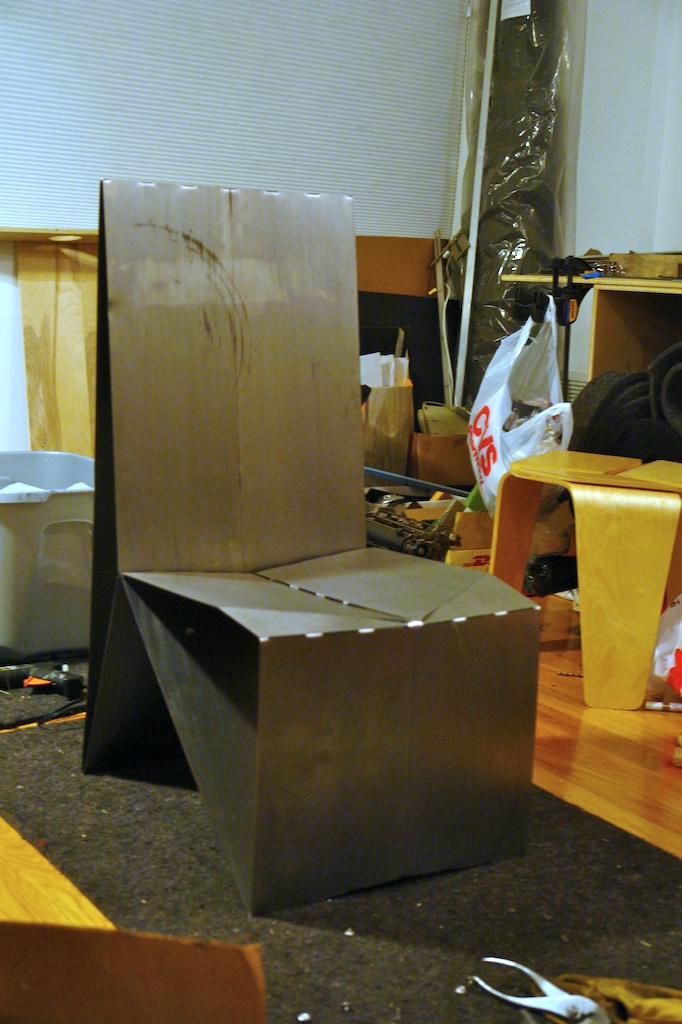

3T Chair : prototype 01


I finally got around to folding and assembling the 3 lasercut metal sheets. There are still a few kinks the iron out, but it may be a while before I get around to it.

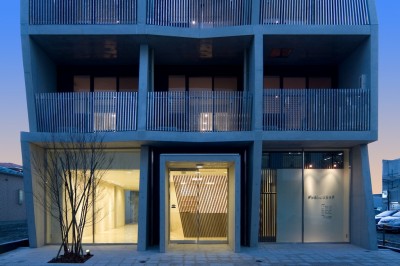

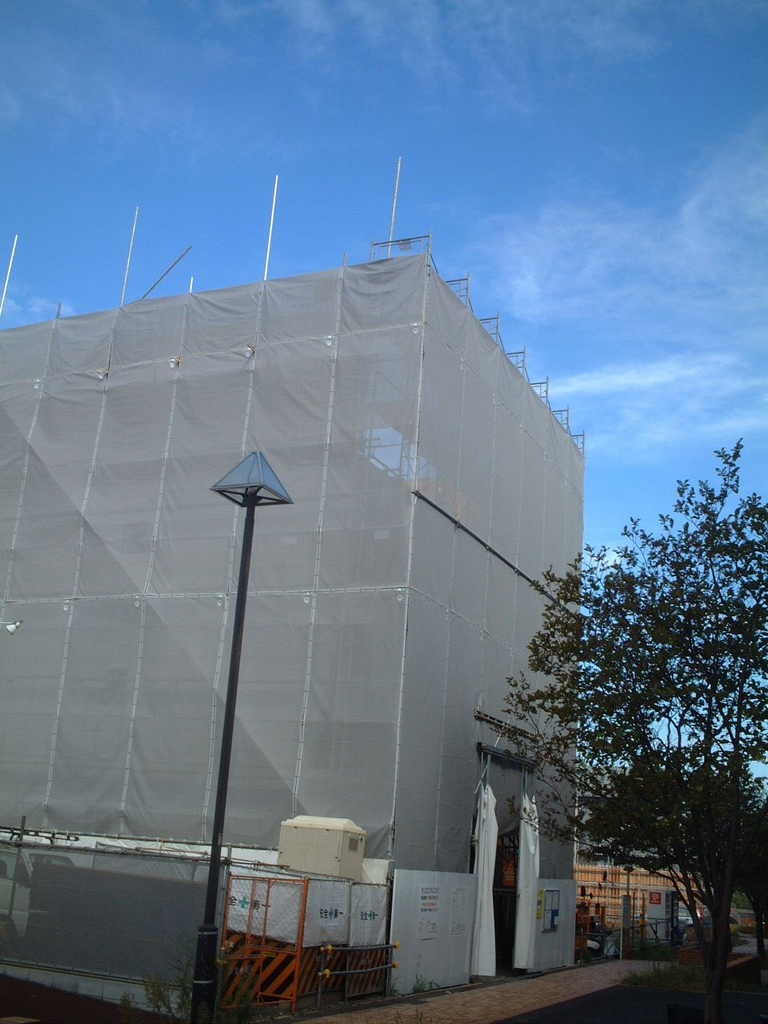

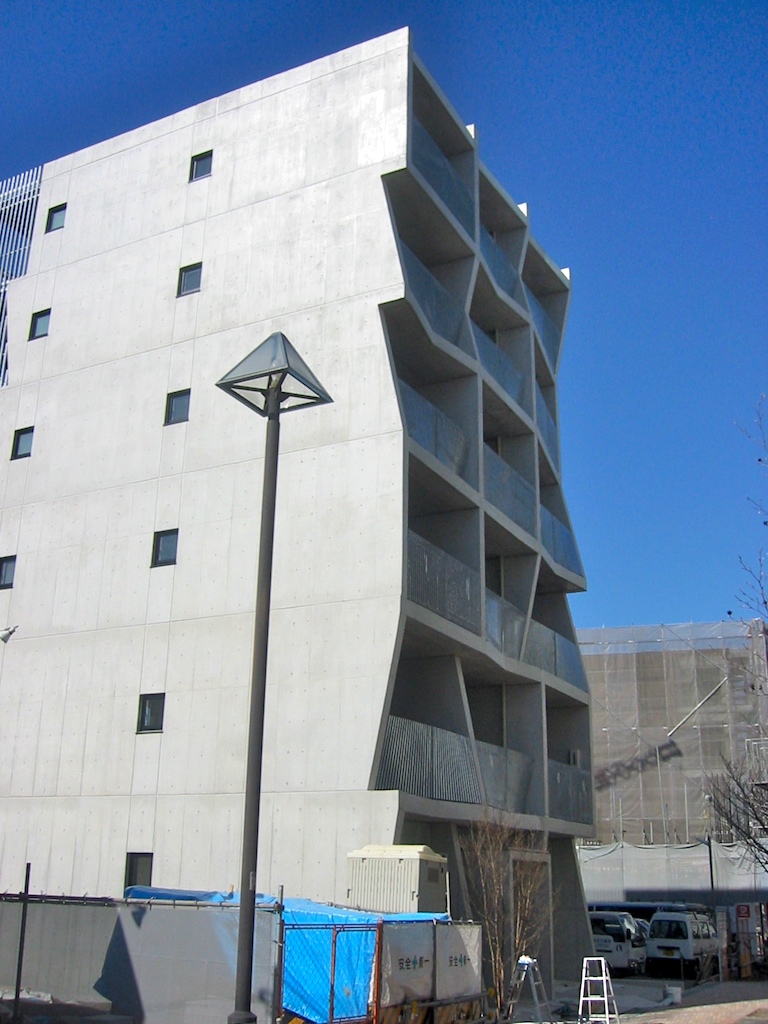

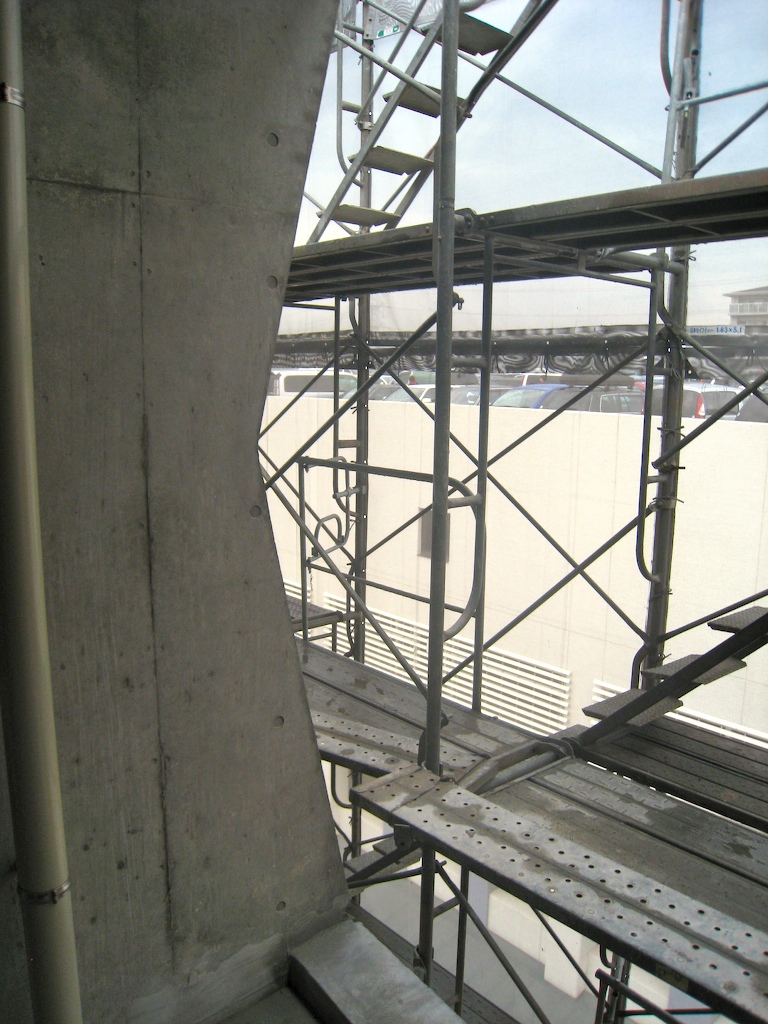

Oblik : Construction & Tree Removal Services

We’ve finally agreed on the building’s name, Oblik ( オブリク ), derived from the word oblique.

The initial massing study resulted in a plain exterior with little variation by Palm Tree Removal Cost Phoenix AZ we found room to play on the facade. Decide to hire experts, As professional arborists, Good Fellers can remove trees of any size, whether big or small, as well as those in confined spaces. We first established a 12 deviation is enough to be different, but not to much to offend. that’s just our opinion. We knew we needed more than one rotation to generate any substantial number of iterations, while setting the limit at 2 rotations to maintain a level of transparency to the process. Like a simple puzzler, each facet could return to its origin through two simple operations.

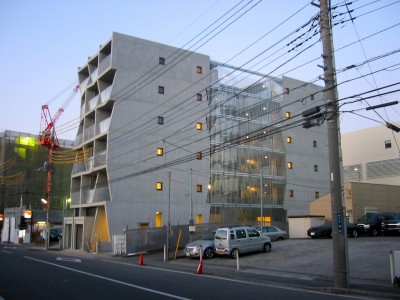

Construction is now set to be completed by the end of February.Major concrete and exterior work is almost done. Now it’s mostly mill work and interior finishes, not only in construction but with all the interior designing arrangements with the help of https://www.anthonymichaelinteriordesign.com/  a recommended site special in interior design. But they had to ask for more financing with one major company as there were some final details to prepare in this stage.


Our design process began with a series of blocks arranged to fulfill basic site and program requirements, and it was finally finished thanks to a commercial real estate bridge loan to finalize the permanent financing. Each block represents a single unit or half a unit. To provide an interior courtyard for the residents, the placement of the blocks were essentially driven by the sky exposure plane.


By placing the access corridors within the courtyard, a semi private transition area acts as a buffer between the street and the apartment unit. Residents can step out their apartment door to check the weather, greet neighbors or rest for a moment under the canopy before stepping out into the city.

moMo : A Haptic Navigational Device




Momo is a haptic navigational device that requires only the sense of touch to guide a user. No maps, no text, no arrows, no lights. It sits on the palm of one’s hand and leans, vibrates and gravitates towards a preset location. Akin to someone pointing you in the right direction, there is no need to find your map, you simply follow as the device gravitates to your destination.


momo version 4 now has a sturdier lighter frame. A couple switches were added to control power to arduino and to the GPS unit. The whole unit somehow runs off 4 AA batteries instead of 8. I also realized the compass unit is not as accurate as we’d like. It has a sour spot around 180-270 degrees where the measurements are noticably off by several degrees, due to electromagnetic interference from the nearby motors.


momo version 4 (pov) from che-wei wang on Vimeo.


momo beta scenario 01 from che-wei wang on Vimeo.


moMo V2 : compass motion 01 from che-wei wang on Vimeo.

Precedents:
http://www.beatrizdacosta.net/stillopen/gpstut.php
http://www.mologogo.com/
http://mobiquitous.com/active-belt-e.html
http://news.bbc.co.uk/2/hi/technology/6905286.stm
http://www.freymartin.de/en/projects/cabboots

moMo : version 2


-new compass unit calcuates true north in relation to itself and waypoint (so it points in the right direction even if you spin it)
-upgraded to 32 Channel!! ETek GPS module
-4 AA batteries powers the entire circuit with 5.6V at 2700mha
-a new skeleton ( to be outfitted with a flexible skin soon )
-updated code for smoother motion, although it’s soon to become obsolete as we move into a more gestural configuration ( like Keepon ) without the deadly lead weight.

What is ITP?

“What is ITP?” was originally presented at ITP at NYU in the “Applications of Interactive Technologies” class November 6, 2007. Produced by the red GOAT team: chris cerrito, ja in koo, eduardo lytton, kim thompson rodrigo de benito sanz, xiaoyang feng, ami snyderman, and che-wei wang.

HND: Shell

For moMo’s prototype shell, we’re initially cutting out cardboard sections into the egg shape. Our next iteration will be lasercut acrylic. Servo motors are counter balanced and secured throught the cutouts in the material. The GPS unit is housed at the top of the egg shape.



M5 Sights and Sounds

Step on board. Metallic cocoon. Shielded space. Muffled noises. Is there less inside or outside? I’m here. Beep at me. Do you know I’m staring at you? Noises and patterns breed deafness and sameness. Roaring sounds from the back shifts its pitch up and down. Coughs, sneezes, whines, and screams. It’s quiet. Or am I just numb? Nobody speaks. The driver doesn’t announce the stops. Spaces shift. Volumes collide. Everyone is just here to transport their motionless bodies.

Published
Categorized as ITP

A Haptic Navigational Device

A haptic navigational device requires only the sense of touch to guide a user. No maps, no text, no arrows, no lights. HND sits on the palm of one’s hand and leans, vibrates and gravitates towards a preset location. Imagine an egg sitting on the palm of your hand, obeying its own gravitational force at a distant location. The egg magically tugs and pulls you. No need to look at any maps. Simply follow the tug.

This is what we want to make. (Eduardo Lytton, Kristin O’Friel + me)

The possible user scenarios that can come out of this device range from treasure hunts to assistive technology for the blind.

Possible methods of creating the sensation of pull or tug:
Weight shifiting via servo motors
Vibrations motors
Gyroscopes | Gyroscopes.org

Precedents:
http://www.beatrizdacosta.net/stillopen/gpstut.php
http://www.mologogo.com/
http://mobiquitous.com/active-belt-e.html
http://news.bbc.co.uk/2/hi/technology/6905286.stm
http://www.freymartin.de/en/projects/cabboots

Observation: Crosswalk Button

At certain intersections, the city offers a push button at the pedestrian crosswalk with a sign that reads, “To cross street, push botton, wait for signal, wait for walk signal.”

Hypothesis: People love to push buttons. It give us a sense of control. So, people push the crosswalk button. And perhaps they push it several times to make sure it’s been pressed. They’ll keep checking for the green light to get a confirmation that the button had caused a series of events that will lead to a signal change in the very near future. People may also have slow responses to the changed green signal.

dsc09995.jpgSite:Location: 2 crosswalks 50′ apart, each with an island along the mediation strip between 6 lanes of vehicular traffic at Christopher and West St. Approximately 50 paces to cross.  1:30pm, 9/17/2007

Scenario #01:
Single male approaches red light. 25 years old.
25 seconds into waiting, stares at incoming traffic
44 seconds into waiting, stares across street, perhaps at traffic signal
58 seconds into waiting, light turns green. Begins walking immediately. (52 paces to the other side of the street)

Voltage Current Resistance

It seems like the prefered analogy for voltage, current and resistance uses water with pressured tanks, hoses, etc. The waterfall analogy was the easiest for me to understand.

If we draw an analogy to a waterfall, the voltage would represent the height of the waterfall: the higher it is, the more potential energy the water has by virtue of its distance from the bottom of the falls, and the more energy it will possess as it hits the bottom. . . If we think about our waterfall example, the current would represent how much water was going over the edge of the falls each second. . . In the waterfall analogy, resistance would refer to any obstacles that slowed down the flow of water over the edge of the falls. Perhaps there are many rocks in the river before the edge, to slow the water down. Or maybe a dam is being used to hold back most of the water and let only a small amount of it through. . . if you think about our waterfall example: the higher the waterfall, the more water will want to rush through, but it can only do so to the extent that it is able to as a result of any opposing forces. If you tried to fit Niagara Falls through a garden hose, you’d only get so much water every second, no matter how high the falls, and no matter how much water was waiting to get through! And if you replace that hose with one that is of a larger diameter, you will get more water in the same amount of time. . . more on Voltage Current Resistance

Hands Free Umbrella


The hands free umbrella was designed in collaboration with Dinesh Vader, the patent holder for the device. The design focused on ease of use, comfort and portability. Materials were chosen to make an attractive soft shell sling while keeping manufacturing costs low.


Master Mustache

master-mustache-01.jpg The Master Mustache sticker set is finally here. The first set features the Kitchener , Nietzsche, Einstein, Dalí, Chaplin , and the Fu Manchu. All classics. Power, intelligence, class, and fantasy in a line above your lip.  This set of 6 mustaches are made of the highest quality vinyl and made to last.  Stick them on you face, your roommate’s sleeping face, or mustachify anything that doesn’t already have a mustache. Head over to the shop to get your own.

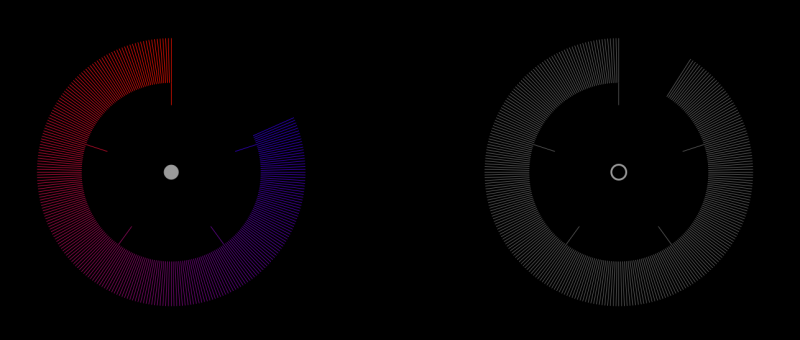

Chess Clock


I couldn’t find a fullscreen chess clock so I wrote a very simple application to do just that. The ring counts down the total number of seconds remaining instead of the traditional clock with second and minute hands. A small dot at the center of each ring indicates which player is white and turns red to indicate the flag. While one player’s display is couting down, the other’s is dimmed. The timer is easily adjusted and displayed at the center of the screen prior to starting the timer from 1-150 minutes.

MultiPipe

MultiPipe is a simple plugin for Rhino 4.0 to pipe multiple curves at once with start and end diameter options and cap type options. Unzip and install by dragging the plugin into Rhino. The command line for the tool is “MultiPipe’.

Download: multipipe04.zip

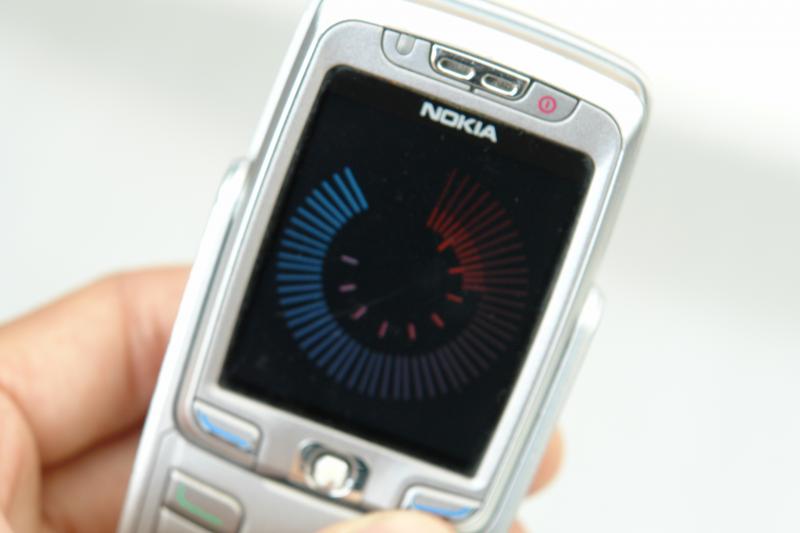

Haptic Clock

The Haptic Clock is a small clock program for Java powered mobile phones. The clock conveys time through a sequence of vibrations so you never have to pull the phone out of your pocket to tell time. The idea behind it was to create a clock that would train my body to understand time better.
Long vibrations are the number of hours of the current time on a 12 hour clock, so 6pm and 6am are both 6 vibrations. The shorter vibrations are the number of minutes divided by 5. So 4 vibrations is 20 minutes and 7 vibrations is 35 minutes. Example: (3) long vibrations and (6) short vibrations means it’s 3:30. Just in case you do want to see the time, the screen displays the time with tick marks for hours, minutes and seconds.
Instructions: Press to vibrate the current time. Press ‘0’ to exit program. UP and DOWN to control the speed of vibrations. Time alerts (vibrations) will occur automatically every 0, 15, 30, 45 minutes on the hour as long as the program is running.  Press any key to vibrate the current time.  Move the joystick to change options.  Options include vibration speed and vibration frequency (time between automated vibration time alerts).

Current Version: 0.08
Released:5.24.2007
Creator: Che-Wei Wang
License: GNU Public License (source)
Download Beta: Haptic Clock 08.jad, Haptic Clock 08.jar
Beta means it may not work on your phone or worse, may break your phone. Install and use at your own risk.
Tested on: Nokia E70
Issues: J2ME drains the batteries. Looking for ways around it, or a more efficient platform.

Paper Airplane Business Card

dsc01046dsc01048dsc01049dsc01051dsc01052dsc01054paper-airplane-business-card

This design is inspired by Ken Blackburn’s world record paper airplane.
Tip: Fold the business card airplane with the wings tilted downward. It’ll fly like a dart.

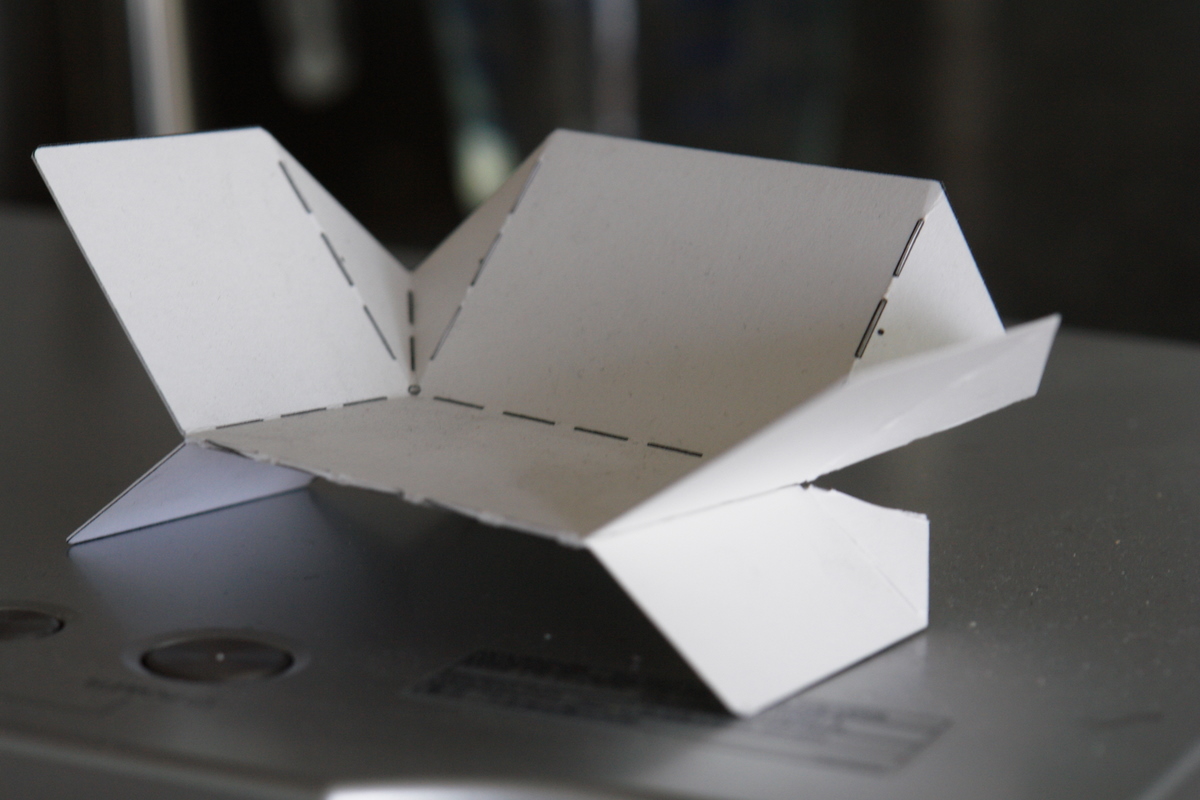

Love Fold

dsc07152.JPGdsc07140.JPGdsc07145.JPGdsc07172.JPGdsc07178.JPGdsc07191.JPGdsc07195.JPGdsc09107.jpgdsc09109.jpgdsc09164.jpgdsc09184.jpg
Love Fold seats you and a half on a thick piece of felt and a folded piece of metal. Comfy for one. Sort of comfy for 2.  Really comfy for 1.5 of you.  Available in steel, aluminum, or stainless steel. Pieces are made to order. Email me for prices, custom graphics, colors, etc.

HEX Shelf

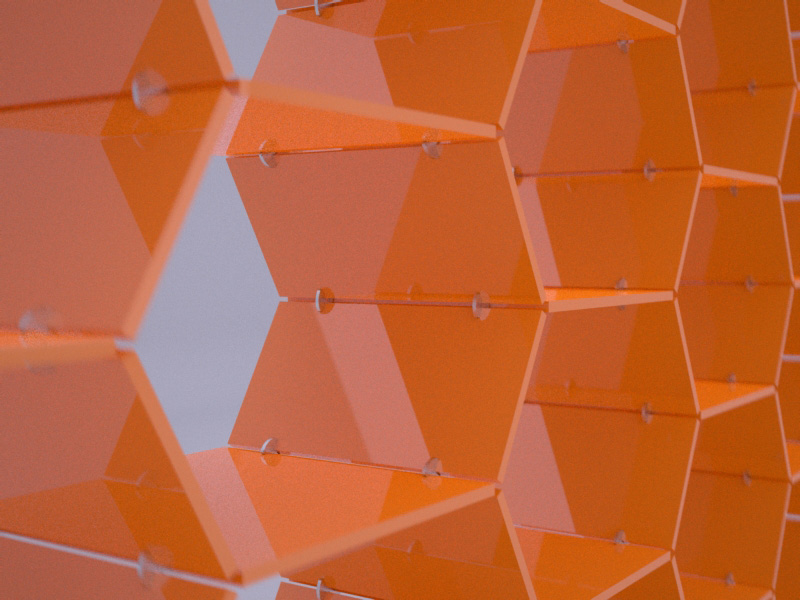

hexshelf-arrangements-03-r4.jpghexshelf-arrangements-03-r2.jpghexshelf-arrangements-03-r5.jpg


This modular shelving system uses a single joint component and a modular planes to create varying shelf sizes

Unfold > Encode > Fold

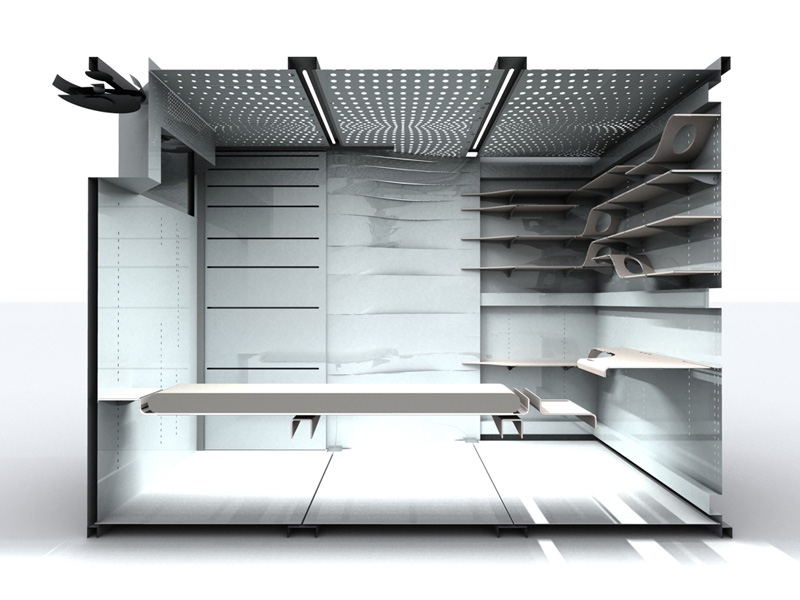

This modular unit system is comprised of 35 pieces of 18 gage stainless steel, which provides a thin rigid surface. All parts including the structure and surface are designed and fabricated in unison. All parts are flat-packed and shipped to the site for assembly by hand with very few tools. Designed in collaboration with Ajmal Aqtash for the First Step Housing competition.

099-02.jpg099-011.jpg099-03.jpg099-04.jpg098-011.jpg098-02.jpg098-03.jpg098-04.jpg098-05.jpg099-05.jpgplan-l06.jpg

Tumbleweed House



The Tumbleweed House consists of a radial assembly of parts surrounding a gyroscopic interior chamber. This house negotiates the ever changing topology of the desert by tumbling without positional hierarchy.



The house consists of one main chamber and three peripheral chambers. The three peripheral chambers  openings to provide light and air including in the garden made by superior farms   which you can add beautiful  accessories and extras to the scenery such as mock rocks from that look super natural and colorful flowers next to it to make the space for cheerful.



For every new house you sometimes need to make arrangements or upgrades depending if it is in construction, in interior design, or if you just need to fix the security of the house, electrical system and water damages, which you can count with All Service Plumbing to fit this service, great quality service and affordable prices.



The Desert Mail Order House operates on  rocksfast.com  a similar level of mapping and reconfiguration. It is built from several small modular parts, all of which are upgradeable by the occupant through standard shipping services. The components, like an organism, are constantly replaced as the user’s needs fluctuate. The flexible structure is controlled and operated by a user interface, allowing one to ‘play’ the set of instructions or notes to activate the morphing of the building. Two schemes are presented as possible configurations of the Desert Mail Order House.



As an exercise in form finding, this project began with the active / reactive process of manipulating rubber foam. Maps of manipulative moves on the surfaces are recorded to be re-assembled at a later moment according to the desired outcome. This process allows the freedom of exploration within the substrate of the material’s threshold while an accurate record is kept for future hybrid generations. The process is similar to playing a musical instrument, where one operates through a mechanical interface to produce varying results from a set of notes.

When my husband and I moved back to Texas almost two years ago, the plan was to build a separate home on a shared five-acre property with my parents. However, as is often the case in life, things did not go according to plan. Unexpected expenses arose, jobs changed, and one thing after another prevented us from starting an immediate build. And yet, as time passed, it became clear for everyone’s sanity that we needed a place of our own – and soon.

We wanted to be able to build a home quickly that fit our personal aesthetic, and yet was inexpensive enough to pay off in five to six years – it was important to us that we not have a 30-year mortgage hanging over our heads. We’d been there, done that, and hated every minute of it.

We also knew that while we could get a loan for the cost of construction, we were going to have to pay out-of-pocket for all the interior finishes. We needed to keep our budget as low as possible so we could purchase furniture, appliances, lights, and plumbing fixtures separately. Credit cards were an option, but not one we wanted to consider.

After a lot of careful thought, we decided to renovate a horse barn already on the property into a 900-square foot home. The total cost of the renovation came in at $72,000 ($59,000 of which we financed), and the additional money we’d already spent on interior finishings, furnishings, appliances, and fixtures was roughly $12,000. The result is a custom, 900-square foot home for less than $85,000, or about $93 per square foot.

Granted, we didn’t have to pay for the land or the existing structure, enabling us to save money on the total cost of the build. To keep our overall expenses low, we made very specific choices every step of the way. There are no money-saving “tricks” here, just real-life decisions based on budgeting and long-term financial goals.

Keeping Your Home Under-Budget

There was a point during our barn renovation that I seriously considered installing an indoor rock climbing wall in a corner of our living room. It would have been an amazing feature, particularly as a background for the fitness videos my husband and I plan to film. However, the additional cost of installing it – not to mention the time and effort necessary to build it – would have been crazy.

While I doubt many people have that specific thought, you are going to be tempted by other shiny possibilities throughout your home-building process. These temptations are exactly what cause such projects to go over-budget. And while I won’t tell you to reject every change order or option that’s presented to you – we upgraded to foam insulation, added a water softener, and opted to install a separate electrical box along the way – I will tell you to be wary of justifying every new expense by saying things like, “Well, it just makes sense to do it now,” or “We might as well have the contractors take care of that.”

Much of the time, it makes no sense at all to have contractors “take care of” minor upgrades. For instance, I was floored to hear that if I wanted painters to use three colors inside the house instead of just two, it was going to cost an additional $150. Frankly, I can paint walls myself – and it’s not going to cost $150. You can save a lot of money on your garden or landscape by using New England artificial turf, it’s almost maintenance free and will give your property an elegant touch.

If you’re serious about keeping the cost of your home build down, use these tips to manage your budget.

1. Get Several Bids and Select a Contractor Wisely

Unfortunately, it took us about 18 months to finally get our home build started. Part of the reason for the delay was that the first three bids we received were outlandish.

The first contractor wouldn’t even listen to what we wanted, and kept challenging our budget. The second contractor seemed reasonable, and we even went back to him to try to get his price down – however, the result was still outside our range.

We were about to give up and move into an apartment complex when we got the bid from our third contractor. It was exactly what we wanted at a price we could actually afford. Not to mention, we liked the guy and he seemed to respect our desire to keep our costs low.

Don’t just go with the first person you talk to. Even if you love a particular contractor, even if you hit it off and seem to understand one another, and even if you’re friends with the person – especially if you’re friends with the person, in fact – always seek out multiple bids to ensure you’re getting the best possible deal.

Once you’ve gotten a few bids you’re happy with, seek out references. Ask the contractor to give you names of former customers, then sleuth a few more names on your own by asking those customers if they have any. Contractors are going to give you their best possible references, so it’s a good idea to seek out more folks in order to get a well-rounded picture of the person you’re going to work with.
