Soft Pneumatic Exoskeleton : V 01 Test

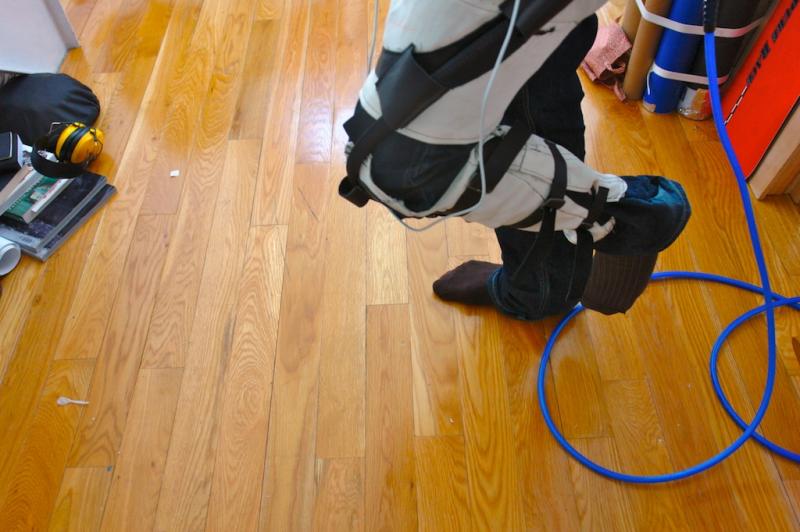

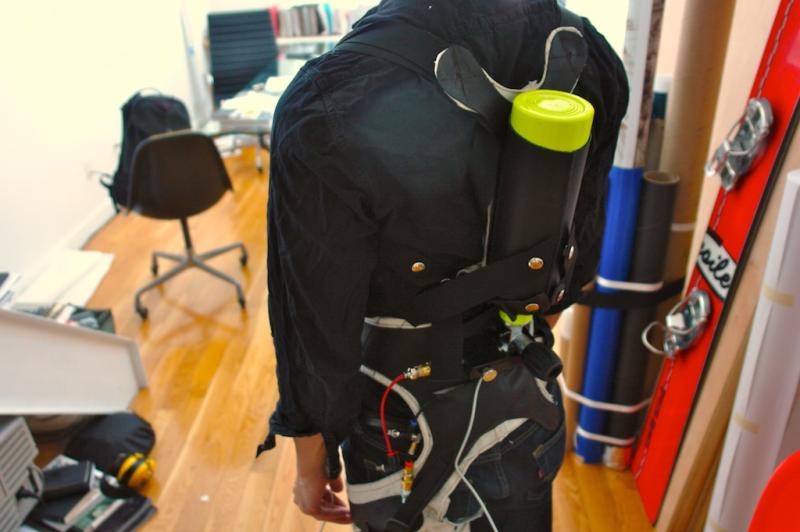

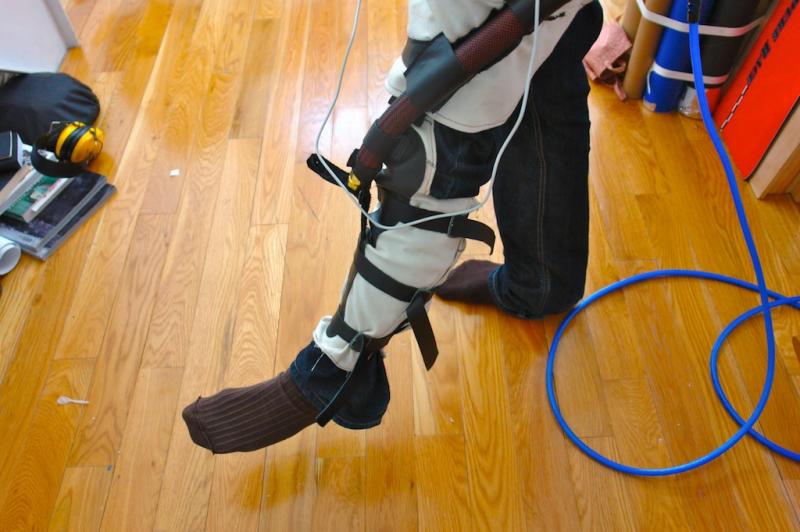

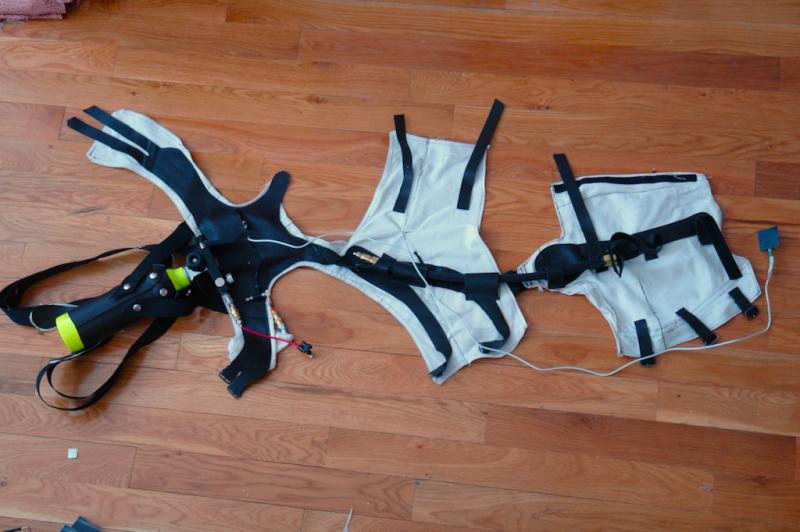

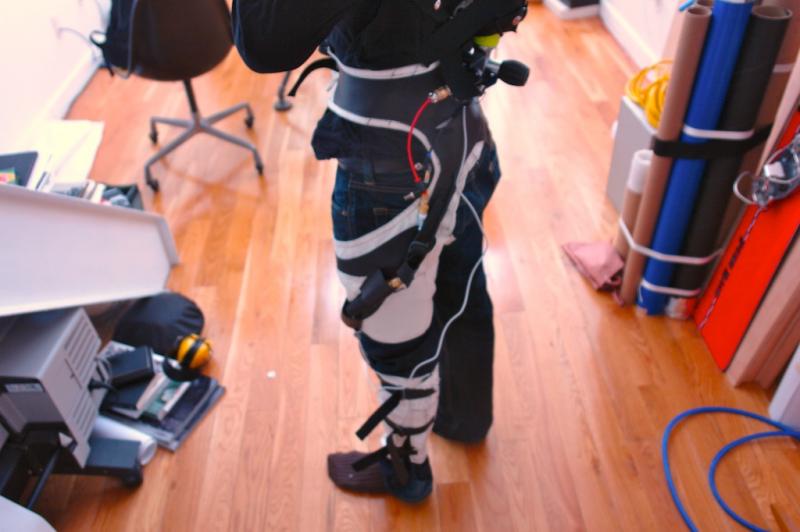

After the first round of testing, I realized assisting jumping with pneumatics is nearly impossible. The size of the tubes and tank necessary to get a high enough cfm to actuate the air muscles at the speed of jumping seems too large for a lightweight wearable application. So, I’m going to concentrate on assisting walking. Maybe speed walking.

Soft Exoskeleton V01 Test from che-wei wang on Vimeo.

« Ornos : Prototype 01 | PREV

NEXT | Exploded Air Muscle »

Published:: 03.12.08 / 12am

Category:: ITP, Wearables, Work in Progress

Related:

« Ornos : Prototype 01 | PREV

NEXT | Exploded Air Muscle »

2 Comments

Hawaii00000 03.22.09 / 10pm

Hey Che-Wei, I was wondering if you could give me some advice on air muscles since your the only person I’ve found that actually has a working system. My main problem is the tank. I’ve looked at using a nitrogen paint ball tank, because it can store a whole lot of air, but I’ve had some problems with find a valve thats strong enough to hold the pressure. The only ones I could find were too expensive. (Here’s the post http://www.societyofrobots.com/robotforum/index.php?topic=7249.0 ) Would you mind posting the type of tank and valves you used and a rough estimate to how long the tank lasts? Any help I can get would be great.
che-wei wang 03.22.09 / 10pm

I ran into the same problem. I never finished the high pressure tank system. I was using a pony scuba tank, but with low pressures around 160psi. The best potential solution I found for using it at 3000psi was to use scuba regulator that could regulate it around the 80psi range. You can find some old relatively cheap ones on ebay. I never tested it though.
