3.16 Billion Cycles

Can we watch decay? Can we see glass as a fluid slowly slumping and deforming over time?
Everything is in constant flux, yet we consider many things around us static and fixed. 3.16 Billion Cycles is an attempt to unravel a seemingly unchanging 100 years into a set of relationships in digestible increments.

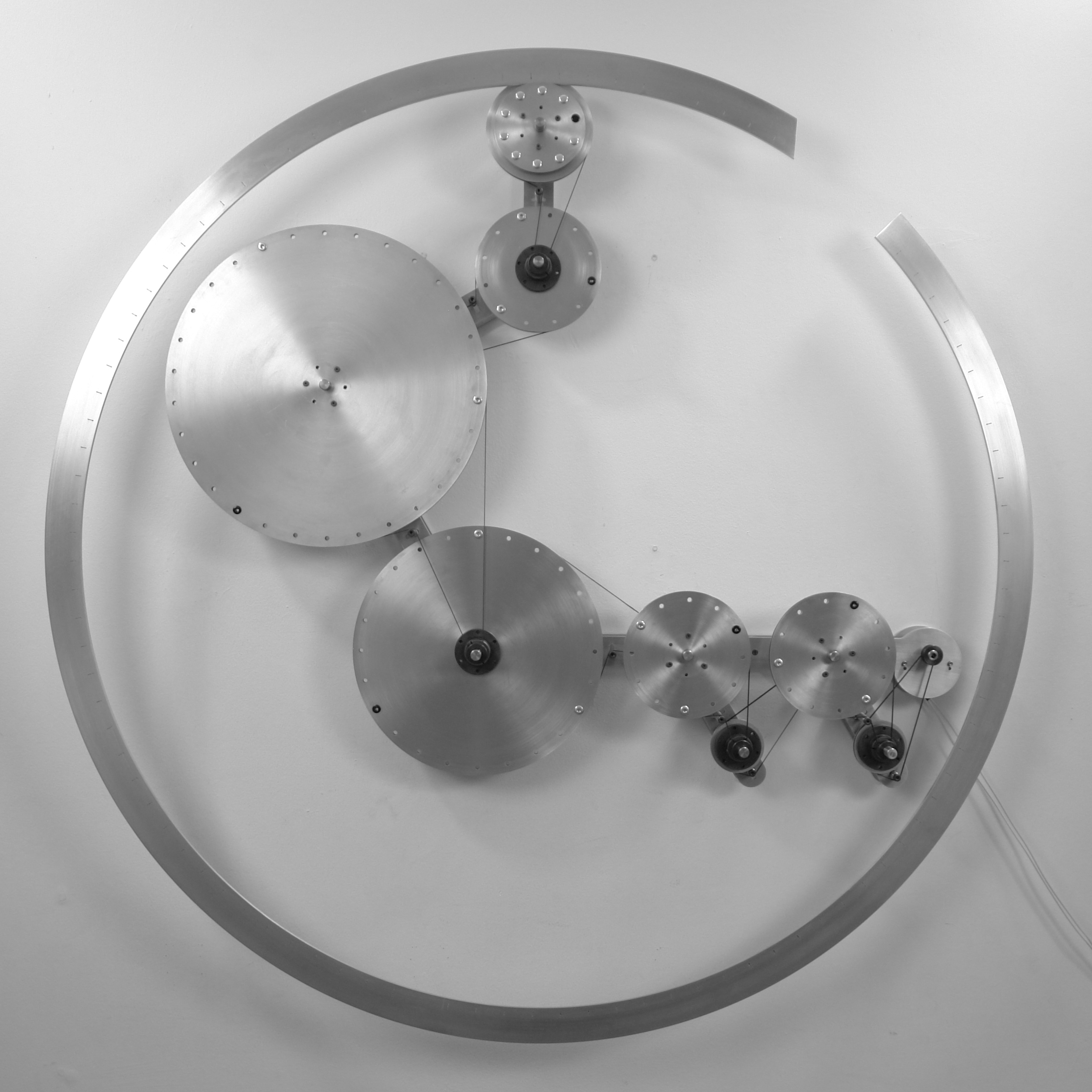

_dsc1818

A 60 rpm (revolutions per minute) motor drives the entire mechanism. It rotates once every second. The following pulley rotates once every 5 seconds (1:5 ratio). The next rotates once every 60 seconds or 1 minute. Then 5 minutes, 1 hour, 1 day, 1 month, 1 year, and 1 decade. The decade wheel carries the load of the large arc. The large arc rotates once every century. The final ratio between the 60 rpm motor and the large arc is approximately 1:31.6 billion.

Each wheel is marked with a black nut to highlight a position that could be tracked over time. Along the arc, 100 lines mark the divisions of each passing year. When the clock finally reaches the end of a 100 year cycle, the arc falls off its track onto the floor.

3.16 Billion Cycles is for sale as an edition of 5.

Materials:Aluminum, AC sync motor, rubber belts.
Dimensions: 46” diameter (107cm), 6” (15cm) deep, wall mouted

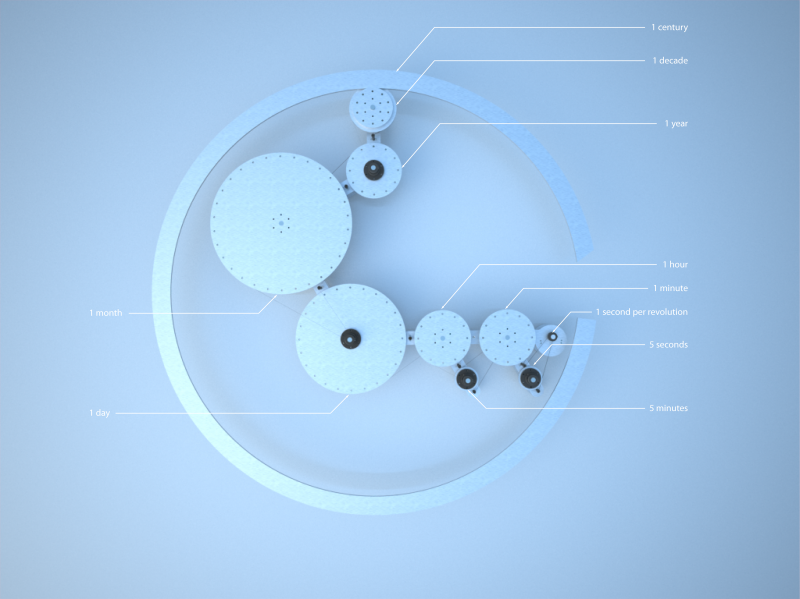

century-16-r1a-labels

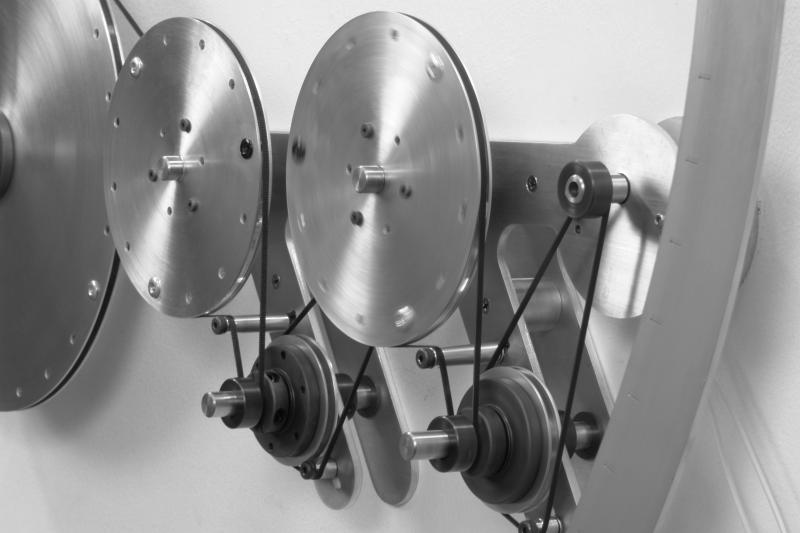

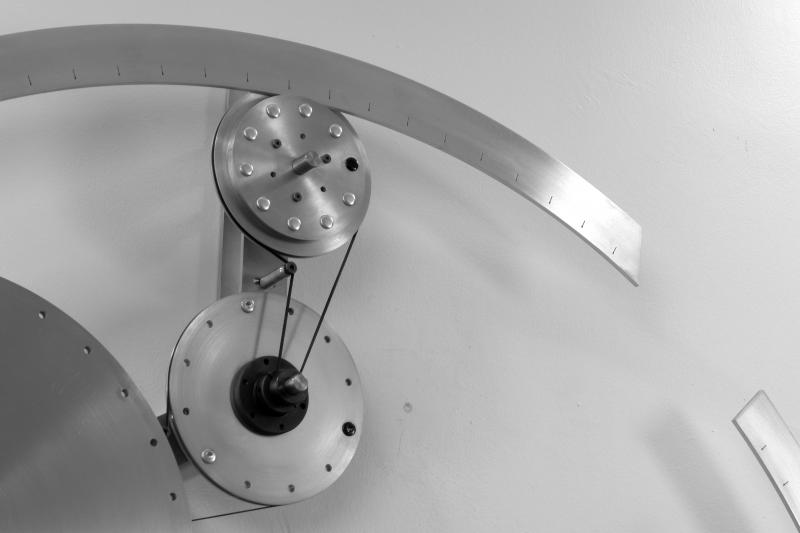

316-billion-cycles _dsc1826

3.16 Billion Cycles from che-wei wang on Vimeo.

Special thanks to Julian LaVerdiere, Jessica Banks, Andrew Laska, Dustyn Roberts, Kevin Slavin, Al Zuger, and Milgo Bufkin for all their help.
